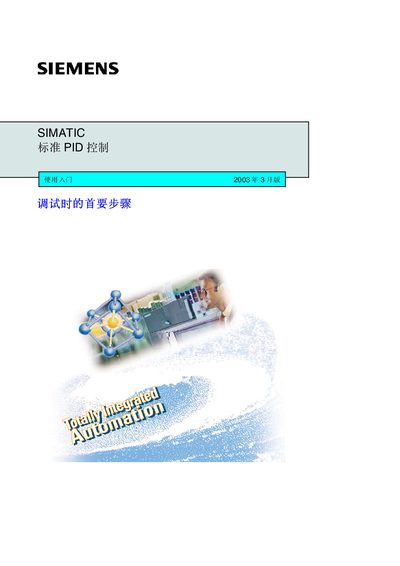

Siemens SIMATIC Standard PID Control Quick Start Guide
This guide introduces the Siemens SIMATIC Standard PID Control function block, covering safety guidelines, required hardware and software, and the overall workflow for setting up and testing the controller.
It provides step‑by‑step instructions for installing the example project, configuring the PID block in the SIMATIC manager, confirming the process, and testing the controller using the Loop Monitor and Curve Recorder. This manual is written in Chinese.
Siemens V5.1 specifications
| PID control function block version | V5.1 |
|---|---|
| Supported PLC models | S7-300, S7-400, C7-CPU, Win AC |
| Required STEP 7 version | V5.2 or higher |
Source: Siemens SIMATIC Standard PID Control Quick Start Guide
All Siemens V5.1 documents by type
The shortest path to a working setup, usually only a few pages.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which PLC models are required for the Standard PID Control?
You need one of the following PLC models: S7-300, S7-400, C7-CPU, or Win AC.
From: Siemens SIMATIC Standard PID Control Quick Start Guide
What software version is needed on the programming device?
STEP 7 version V5.2 or higher must be installed on the programming device.
From: Siemens SIMATIC Standard PID Control Quick Start Guide
What does the "Danger" symbol indicate?
It signals a serious safety hazard that could cause injury or damage.
