Key facts
- Brand
- Siemens
- Model
- SIMATIC Rack PC 847B
- Category
- Industrial Supply
- Industry
- Industrial
- Documents
- 2
- Languages
- EN · ZH
- Last added
- 2000-01-01
Start here

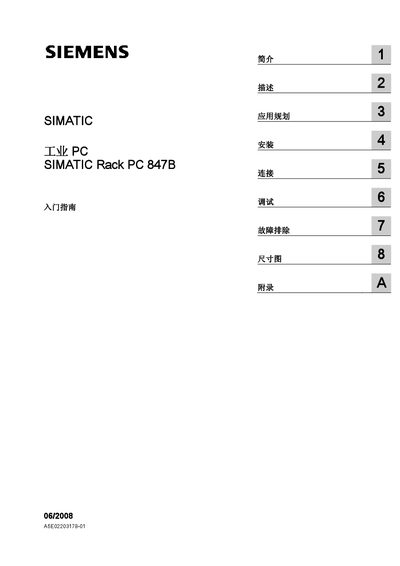

Siemens SIMATIC Rack PC 847B User Manual
This manual introduces the SIMATIC Rack PC 847B industrial PC, covering its external structure, operator controls, connector layout and status displays. It also outlines application planning, transport, unpacking, environmental requirements and access protection.
Detailed sections guide the installer through mounting, rail data, wiring to power and peripheral devices, commissioning steps, common troubleshooting, dimensions and certification information, plus contact details for technical support and service.
Siemens SIMATIC Rack PC 847B specifications
| USB interfaces | 2 |
|---|---|
| Video output (digital) | DVI‑D or optional DMS59 |
| Audio input connector | 3.5 mm jack |
| Audio output connector | 3.5 mm jack |
| VGA connector | Standard VGA |
| Mouse connector | PS/2 |
All Siemens SIMATIC Rack PC 847B documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many USB ports does the Rack PC 847B have?
It provides two USB interfaces.
What safety symbols are used in the guide?
A warning triangle indicates a risk of personal injury, while symbols without the triangle refer only to property damage.
Who is allowed to install and operate the device?
Only qualified professional personnel may install, debug, and operate the equipment.
