Key facts
- Brand
- Siemens
- Model
- SINAMICS V10
- Category
- Industrial Supply
- Industry
- Industrial
- Documents
- 4
- Languages
- ZH
- Last added
- 2012-03-31
Start here

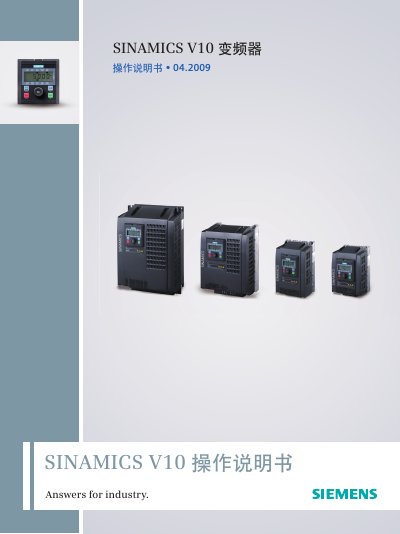

Siemens V10 Frequency Converter Operation Manual
The document covers safety instructions, product overview, delivery confirmation, mechanical and electrical installation, and commissioning procedures. It also includes parameter lists, fault diagnosis, technical data, and a fan replacement guide.
Detailed sections describe wiring requirements, recommended fuses, pulse‑frequency settings, and recommended operating conditions, helping qualified personnel safely install and maintain the converter. This manual is written in Chinese.
Siemens SINAMICS V10 specifications
| Power range | 0.55 kW – 22 kW |
|---|---|
| Input voltage | 400 V 3 AC ‑15 % to +15 % |
| Output frequency range | 0 Hz – 300 Hz |
| Efficiency | 96 % – 97 % |
| Protection class | IP21 (except I/O terminals) |
| Cooling method | Natural cooling for size A; forced‑air fan cooling for sizes B‑D |
All Siemens SINAMICS V10 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What protection rating does the SINAMICS V10 have?
It is rated IP21, except for the input/output terminals.
Can the SINAMICS V10 be installed through a wall?
Yes, the V10 supports wall‑through (穿墙式) installation with optional mounting components.
What is the power rating range of the SINAMICS V10?
The drive is rated from 0.55 kW up to 22 kW.
What IP protection does the SINAMICS V10 have?
It has an IP21 protection rating.
