Start here

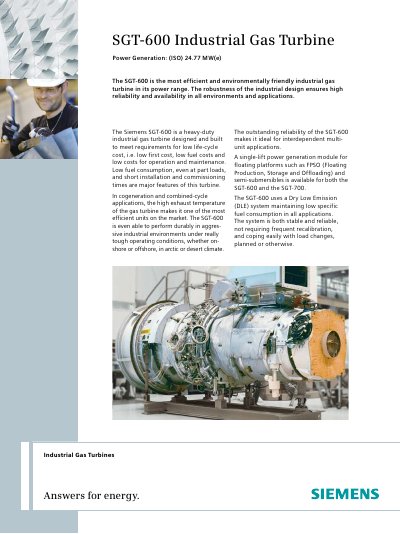

Siemens SGT-600 Industrial Gas Turbine Product Leaflet
The SGT-600 is a heavy‑duty industrial gas turbine designed for low life‑cycle cost, high reliability and excellent efficiency across a range of environments, including offshore, arctic and desert conditions. Key features include a Dry Low Emission (DLE) system, low fuel consumption, modular construction for easy on‑site maintenance, and a compact layout that matches the SGT‑700 footprint.
The leaflet provides a full set of technical data such as power output, efficiency, pressure ratio and emissions limits, as well as package dimensions, overhaul intervals and support options. It also outlines the turbine’s compressor, combustion and turbine stages, fuel system capabilities, and the global service network available for customers.
Siemens SGT-600 specifications
| Power generation | 24.77 MW(e) |
|---|---|
| Electrical efficiency | 34.2% |
| Heat rate | 10,533 kJ/kWh |
| Turbine speed | 7,700 rpm |
| Compressor pressure ratio | 14:1 |
| Exhaust temperature | 543 °C |
| Overhaul interval | 40,000 hours |
Source: Siemens SGT-600 Industrial Gas Turbine Product Leaflet
All Siemens SGT-600 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the rated power output of the SGT‑600?
The turbine is rated at 24.77 MW(e).
From: Siemens SGT-600 Industrial Gas Turbine Product Leaflet
How often does the turbine require an overhaul?
Standard overhaul intervals are 40,000 operating hours.
From: Siemens SGT-600 Industrial Gas Turbine Product Leaflet
