Key facts
- Brand
- Siemens
- Model
- MICROMASTER 410
- Industry
- Industrial
- Documents
- 5
- Languages
- ZH · EN
- Last added
- 2012-03-12
Start here

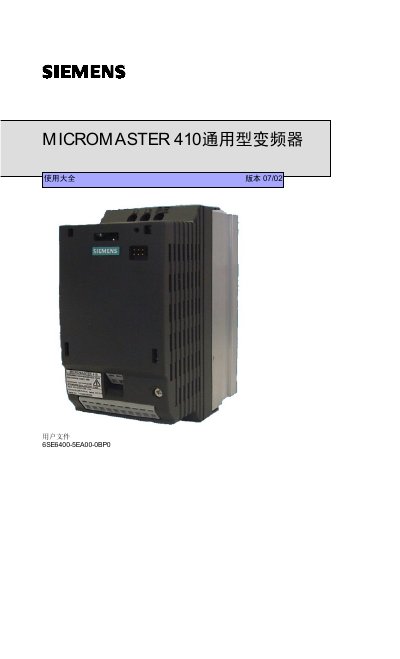

Siemens MICROMASTER 410 Variable Frequency Drive User Manual
This manual covers the complete lifecycle of the MICROMASTER 410 variable frequency drive, including safety instructions, installation steps, commissioning, control methods, system parameters, fault diagnosis, technical specifications, optional accessories, and EMC compliance. It also provides detailed parameter tables and wiring diagrams for proper integration.
The document is intended for trained and certified personnel, emphasizing safe handling of high‑voltage components, proper grounding, and adherence to relevant standards such as IEC 60204 and EN 60204. Contact information for Siemens technical support in China and Germany is included for further assistance. This manual is written in Chinese.
Siemens MICROMASTER 410 specifications
| MICROMASTER 410 power range | 0.12 kW to 0.75 kW |
|---|---|
| MICROMASTER 420 power range | 0.12 kW to 11 kW |
| MICROMASTER 430 power range | 7.5 kW to 90 kW |
| MICROMASTER 440 power range | 0.12 kW to 250 kW |
| Supply voltage (single‑phase) | 100 V to 120 V |
| Supply voltage (single‑phase) | 200 V to 240 V |
| Supply voltage (three‑phase) | 380 V to 480 V |
| Digital inputs (410/420) | 3 |
| Digital inputs (430/440) | 6 |
| Analog inputs (410/420) | 1 |
| Analog inputs (430/440) | 2 |
| Relay outputs (410/420) | 1 |
| Relay outputs (430/440) | 3 |
Source: Siemens MICROMASTER 410/420/430/440 Frequency Converter Manual
All Siemens MICROMASTER 410 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What power range does the MICROMASTER 410 cover?
The MICROMASTER 410 supports power from 0.12 kW up to 0.75 kW.
From: Siemens MICROMASTER 410/420/430/440 Frequency Converter Manual
How many digital inputs are available on the MICROMASTER 430?
The MICROMASTER 430 provides six digital inputs.
From: Siemens MICROMASTER 410/420/430/440 Frequency Converter Manual
Who is allowed to install and debug the MICROMASTER 410?
Only trained, certified personnel who are familiar with the installation, debugging, and operation steps may work on the device.
From: Siemens MICROMASTER 410 Variable Frequency Drive User Manual
What is the power range of the MICROMASTER 410 inverter?
The MICROMASTER 410 is rated for 0.12 kW to 0.75 kW output power.
From: Siemens MICROMASTER 410/420/430/440 Inverter Product Sample
What input voltage options are available for the MICROMASTER 410?
It can be powered from 200 V to 240 V AC single‑phase, ±10 % tolerance.
From: Siemens MICROMASTER 410/420/430/440 Inverter Product Sample
