Start here

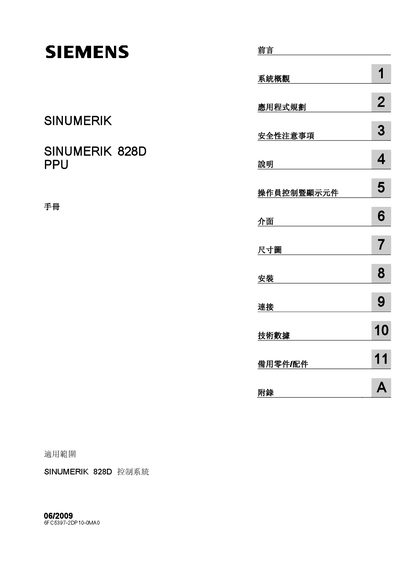

Siemens SINUMERIK 828D PPU User Manual
This document describes the SINUMERIK 828D PPU controller, covering system overview, application planning, safety precautions, and detailed descriptions of operator controls and display components. It also explains the various interfaces such as X1 power supply, DRIVE‑CLiQ, PLC I/O, Ethernet, and digital I/O.
Installation, connection procedures, technical specifications, spare parts, and accessories are presented with diagrams and tables. The manual includes safety symbols, environmental requirements, and guidelines for using approved CompactFlash cards. This manual is written in Chinese.
All Siemens 828D documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Instruction set, parameters and examples for configuring or programming the device.
Questions answered in these manuals
What does the danger symbol indicate in this manual?
The danger symbol indicates that not taking the required precautions could lead to death or serious personal injury.
Which Siemens product is this manual for?
The manual is for the SINUMERIK 828D PPU controller.
Which G functions switch between Siemens and ISO language modes?
G290 activates Siemens NC programming language, while G291 activates ISO NC programming language.
From: Siemens SINUMERIK 840D sl/840Di sl/828D/802D sl ISO Turning Programming Manual
What is the maximum number of axes that can be programmed in ISO language mode?
Up to nine axes can be programmed.
From: Siemens SINUMERIK 840D sl/840Di sl/828D/802D sl ISO Turning Programming Manual
