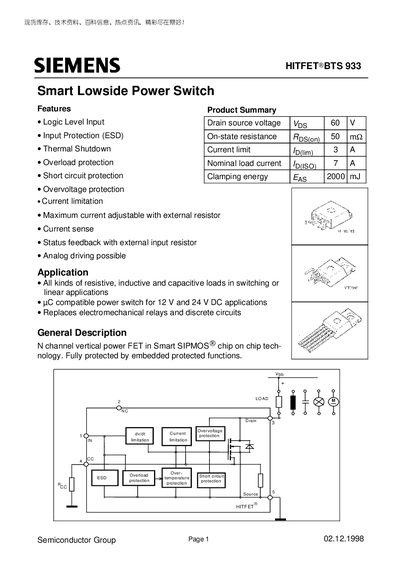

Siemens BTS 933 Smart Lowside Power Switch Datasheet
The BTS 933 is a Smart Lowside Power Switch based on N‑channel vertical power FET technology. It offers logic‑level input, over‑current, over‑temperature, and ESD protection, making it suitable for resistive, inductive, and capacitive loads in 12 V and 24 V DC applications and as a replacement for electromechanical relays.
The document lists maximum ratings, electrical characteristics, and package dimensions. Key parameters include a 60 V drain‑source voltage, 7 A nominal load current, 90 W power dissipation, and operation from –40 °C to +150 °C. Ordering codes and mechanical drawings are also provided.
Siemens 933MANUAL specifications
| Drain‑source voltage (Vds) | 60 V |
|---|---|
| Nominal load current | 7 A |
| Power dissipation (Prot) | 90 W |
| Unclamped single pulse inductive energy | 2000 mJ |
| Thermal resistance (junction‑case) | 1.4 K/W |
Source: Siemens BTS 933 Smart Lowside Power Switch Datasheet
