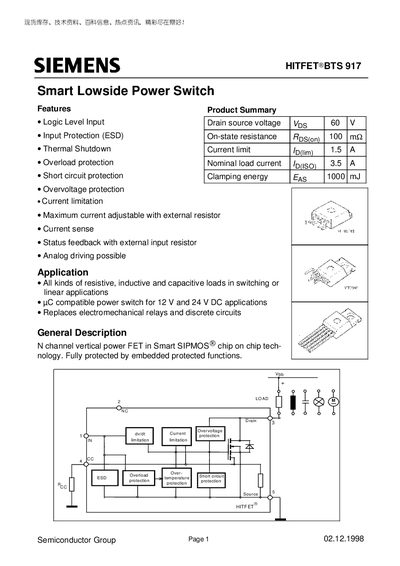

Siemens BTS 917 Smart Lowside Power Switch User Manual
The BTS 917 Smart Lowside Power Switch is a N‑channel vertical power FET designed for resistive, inductive and capacitive loads in 12 V and 24 V DC applications. It replaces electromechanical relays and offers built‑in protection functions such as over‑voltage, over‑current, short‑circuit and thermal shutdown.
The document contains a product summary, maximum ratings, detailed electrical characteristics, block diagram, dynamic and protection specifications, as well as package dimensions and ordering codes. It also includes safety notices and contact information for Siemens Semiconductor Group.
Siemens BTS 917 specifications
| Drain‑source voltage (Vps) | 60 V |
|---|---|
| Nominal load current | 3.5 A |
| Unclamped single pulse inductive energy | 1000 mJ |
| Operating temperature range | -40 °C to +150 °C |
Source: Siemens BTS 917 Smart Lowside Power Switch Datasheet
