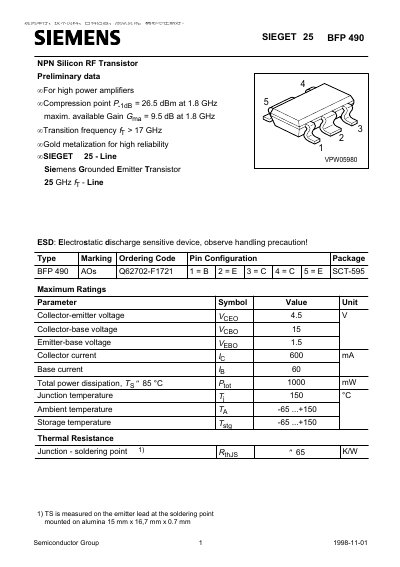

Siemens BFP 490 Semiconductor Transistor Datasheet
The BFP 490 is an NPN silicon RF transistor designed for high‑power amplifier applications. It features a gold‑metalized grounded‑emitter structure for high reliability and delivers a compression point of 26.5 dBm at 1.8 GHz with a gain of 9.5 dB.
The document lists the device's maximum ratings, DC and AC electrical characteristics, S‑parameter measurements, SPICE model parameters, and graphs of power dissipation, gain and noise figure. It also includes guidelines for non‑linear simulation and pulse‑load handling.
Siemens BFP 490 specifications
| Collector‑emitter voltage (VCEO) | 4.5 V |
|---|---|
| Collector current (IC) max | 600 mA |
| Transition frequency (fT) | > 17 GHz |
| Gain (Gma) at 1.8 GHz | 9.5 dB |
