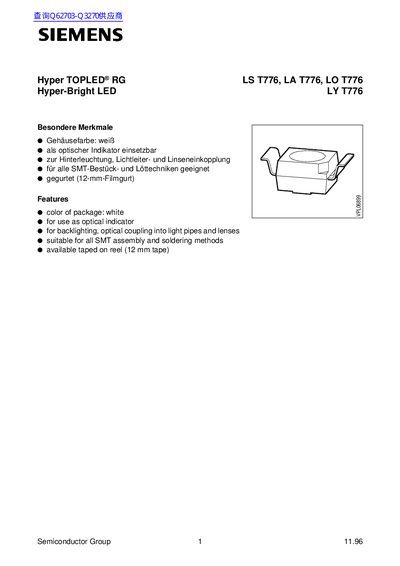

Siemens LS/LA/LO/LY T776 LED Datasheet
This document is a technical datasheet for the Siemens Hyper-Bright LED series, specifically models LS T776, LA T776, LO T776, and LY T776. The LEDs are designed with white packages for use as optical indicators or for backlighting applications involving light pipes and lenses.
The document provides detailed electrical and optical specifications, including maximum ratings such as operating temperature ranges from -55 to +100°C and forward current limits of 20 mA. It also lists specific characteristics like peak wavelength, viewing angles, and thermal resistance values for each model variant.
All Siemens T776 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum forward current rating for these LEDs?
The maximum permissible forward current is 20 mA.
How wide is the tape reel used for packaging these components?
The LEDs are available on a 12 mm tape reel.
