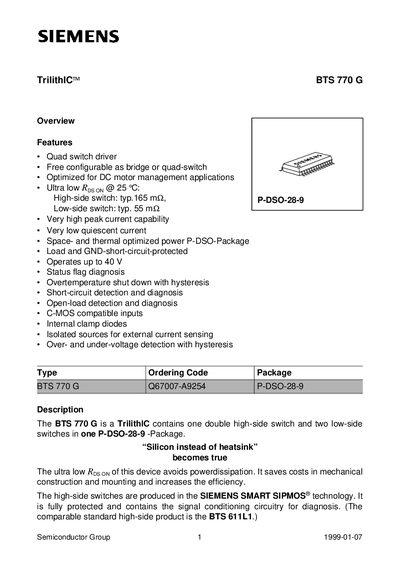

Siemens BTS 770G Datasheet
The Siemens BTS 770G is a quad‑switch driver IC that integrates one high‑side and two low‑side switches in a P‑DSO‑28‑9 package. It is designed for DC motor management and can be configured as a bridge or quad‑switch, offering high peak current capability and very low quiescent current.
The document provides an overview of features, pin definitions, circuit description, protection functions, diagnosis flags, watchdog operation, and package dimensions, making it a complete reference for designers using the BTS 770G in automotive or industrial applications.
Siemens BTS 770G specifications
| Operating Voltage | Up to 40 V |
|---|---|
| High‑side Switch R_on (typ.) | 165 mΩ |
| Low‑side Switch R_on (typ.) | 55 mΩ |
| Current Sense Capability | Configurable with external sense resistors |
Source: Siemens BTS 770G Datasheet
All Siemens BTS 770G documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage for the BTS 770G?
The device operates up to 40 V.
Can the BTS 770G be used in an H‑Bridge configuration?
Yes, the three switches can be arranged as an H‑Bridge or other configurations.
What is the maximum supply voltage for the BTS 770G?
The BTS 770G can operate with a supply voltage up to 40 V.
How are the input pins compatible with logic levels?
The control inputs GH1 and GH2 are TTL/CMOS compatible Schmitt‑Trigger inputs with hysteresis.
