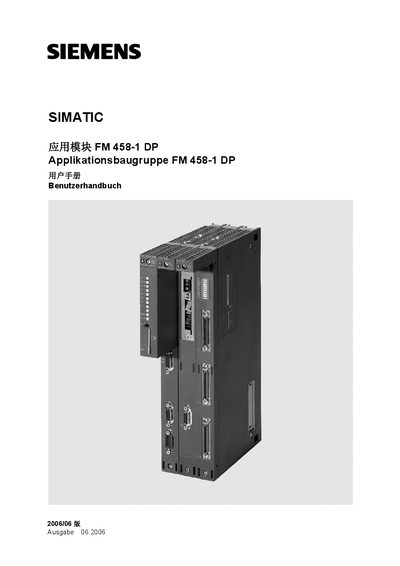

Siemens FM 458-1 DP Application Module User Manual
This manual describes the FM 458-1 DP application module, including safety guidelines, hardware specifications, and supported functions. It covers definitions, product description, installation steps, and assembly guidelines for integrating the module into SIMATIC systems.
Detailed sections explain configuration of the module, PROFIBUS DP connection, parameterization, and diagnostics. The document also provides technical support contacts and compliance information for safe and reliable operation. This manual is written in Chinese.
Siemens FM458-1 DP specifications
| Encoder power supply | 5 V |
|---|---|
| Encoder pulses per revolution | 4096 |
| Signal cycles per revolution | 8192 |
| MOD value range | 1–230 |
All Siemens FM458-1 DP documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Instruction set, parameters and examples for configuring or programming the device.
Questions answered in these manuals
What is the order number for the FM 458-1 DP application module?
The order numbers are 6DD1607-0AA1 and 6DD1607-0AA2.
Which Siemens CPUs can be used with the FM 458-1 DP module?
Compatible CPUs include CPU412-1, CPU412-2, CPU414-2, CPU414-3, CPU416-2, CPU416F-2, CPU416-3, CPU417-4, CPU414-4H and CPU417-4H.
What is the default encoder power setting?
The encoder power is set to 5 V.
How many pulses per revolution does the encoder have?
It is configured for 4096 pulses per revolution.
What safety symbols are used in the manual?
The manual uses warning triangle symbols that indicate very dangerous, potentially dangerous, and caution situations.
From: Siemens T400 FM458-1 DP SIMADYN D SIMATIC TDC Function Block Explanation Manual
Who is the intended audience for this manual?
It is primarily aimed at programmers and debugging engineers.
From: Siemens T400 FM458-1 DP SIMADYN D SIMATIC TDC Function Block Explanation Manual
