Key facts
- Brand
- Siemens
- Model
- WM1065 Family 1085
- Category
- Washing Machines
- Documents
- 2
- Languages
- EN · ZH
- Last added
- 2012-03-19
Start here

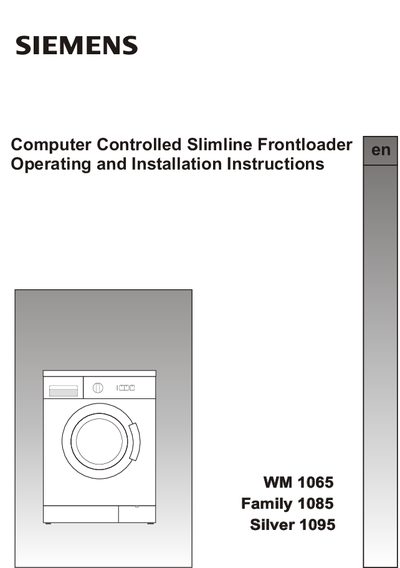

Siemens WM 1065 Family 1085 Silver 1095 Washing Machine Operating and Installation Manual
This manual covers the safe installation, connection, and operation of the Siemens WM 1065 Family 1085 Silver 1095 front‑loader washing machine. It includes detailed safety precautions, wiring and water‑connection requirements, and step‑by‑step guidance for setting up the appliance.
The document also describes all available wash programmes, detergent usage, loading recommendations, cleaning and care procedures, as well as troubleshooting of minor faults and transport preparation. Technical specifications such as voltage, capacity and power ratings are listed for reference.
Siemens WM1065 Family 1085 specifications
| Rated voltage | 220V~ |
|---|---|
| Washing capacity | 5.2kg |
| Heating power | 1800W |
| Spinning power | 460W |
| Maximum current | 10A |
| Water pressure | 0.1~1MPa |
Source: Siemens WM 1065 Family 1085 Silver 1095 Washing Machine Operating and Installation Manual
All Siemens WM1065 Family 1085 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What power requirements must be met when installing the washing machine?
The machine must be connected to an earthed socket with a supply voltage of 220 V and a maximum current of 10 A, and the cable must be suitable for the load.
From: Siemens WM 1065 Family 1085 Silver 1095 Washing Machine Operating and Installation Manual
What is the recommended washing capacity for cottons/coloureds programmes?
The cottons/coloureds programmes are designed for a maximum load of 5.2 kg.
From: Siemens WM 1065 Family 1085 Silver 1095 Washing Machine Operating and Installation Manual
What is the maximum water pressure the machine can handle?
The washing machine can operate with water pressure between 0.1 MPa and 1 MPa.
From: Siemens WM1065 Family 1085 Washing Machine Installation and User Manual
What height should the drain hose be installed at?
The drain hose should be installed with a height between 60 cm (minimum) and 100 cm (maximum).
From: Siemens WM1065 Family 1085 Washing Machine Installation and User Manual
