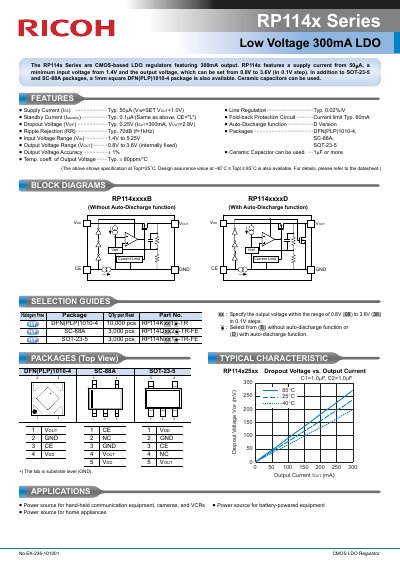

The RP114x Series are CMOS-based LDO regulators featuring 300mA output. RP114x features a supply current from 50μA, a minimum input voltage from 1.4V and the output voltage, which can be set from 0.8V to 3.6V (in 0.1V step). In addition to SOT-23-5 and SC-88A packages, a 1mm square DFN(PLP)1010-4 package is also available. Ceramic capacitors can be used.
The document describes the Ricoh RP114x Series, which are CMOS-based Low Dropout (LDO) regulators providing a 300mA output current. These regulators feature a low supply current of 50nA and a minimum input voltage of 1.4V. The output voltage is adjustable from 0.8V to 3.6V in 0.1V steps. The series is available in SOT-23-5, SC-88A, and DFN(PLP)1010-4 packages and supports ceramic capacitors.
| Output Current | 300mA |
|---|---|
| Supply Current | 50nA |
| Minimum Input Voltage | 1.4V |
| Output Voltage Range | 0.8V to 3.6V |
| Output Voltage Accuracy | +1% |
| Temperature Coefficient | 80ppm/°C |
| Ripple Rejection | 70dB |
| Dropout Voltage | 0.25V |
The series is available in SOT-23-5, SC-88A, and DFN(PLP)1010-4 packages.
Yes, ceramic capacitors can be used for the RP114x Series.
