Key facts
- Brand
- Ricoh
- Model
- RP104X
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-09
Start here

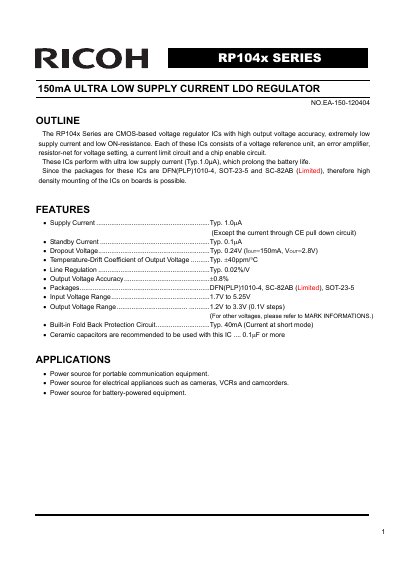

Ricoh RP104x Series LDO Regulator Datasheet
Datasheet 24 pages · 371 KB · EN
The Ricoh RP104x Series are CMOS-based voltage regulator ICs designed for ultra low supply current operation, with a typical supply current of 1.0µA. These ICs feature high output voltage accuracy and low ON-resistance, making them suitable for battery-powered equipment such as portable communication devices, cameras, and VCRs. The series is available in DFN(PLP)1010-4, SC-82AB, and SOT-23-5 packages.
Read onlineRicoh RP104X specifications
| Supply Current | Typ. 1.0µA |
|---|---|
| Temperature-Drift Coefficient | Typ. +40ppm/°C |
| Output Voltage Range | 1.2V to 3.3V |
| Operating Temperature Range | -40 to 85 °C |
| Output Current | 200 mA |
All Ricoh RP104X documents by type
User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical supply current of the RP104x Series?
The typical supply current is 1.0µA, which helps prolong battery life.
Which packages are available for the RP104x Series?
The series is available in DFN(PLP)1010-4, SC-82AB, and SOT-23-5 packages.
