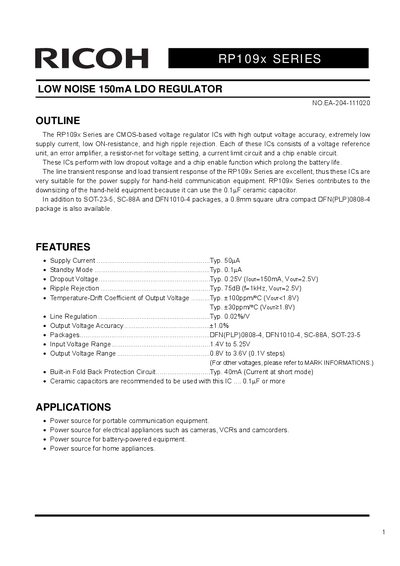

Ricoh RP109x Series Low Noise LDO Regulator Datasheet
The Ricoh RP109x Series are CMOS-based voltage regulator ICs designed for high output voltage accuracy and extremely low supply current. These regulators feature low ON-resistance, high ripple rejection, and a chip enable function to prolong battery life. They are particularly suitable for power supplies in hand-held communication equipment due to their excellent transient response and ability to operate with small 0.1uF ceramic capacitors.
Read onlineRicoh RP109X specifications
| Supply Current | Typ. 50uA |
|---|---|
| Dropout Voltage | 0.25V (lout=150mA, Vout=2.5V) |
| Ripple Rejection | 75dB (f=1kKHz, Vout=2.5V) |
| Temperature-Drift Coefficient | Typ. 30ppm/°C (Vout21.8V) |
| Output Voltage Accuracy | 1.0% |
| Input Voltage Range | 1.4V to 5.25V |
| Output Voltage Range | 0.8V to 3.6V (0.1V steps) |
| Short Current Limit | Typ. 40mA |
| Operating Temperature Range | -40 to 85 °C |
Source: Ricoh RP109x Series Low Noise LDO Regulator Datasheet
All Ricoh RP109X documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What packages are available for the RP109x Series?
The series is available in DFN(PLP)0808-4, DFN1010-4, SC-88A, and SOT-23-5 packages.
What capacitors are recommended for use with this IC?
Ceramic capacitors of 0.1uF or more are recommended for both input and output.
What is the maximum output current of the RP109x Series?
The RP109x Series features a 150mA output.
What is the minimum input voltage required for the RP109x Series?
The input voltage is as low as 1.4V.
