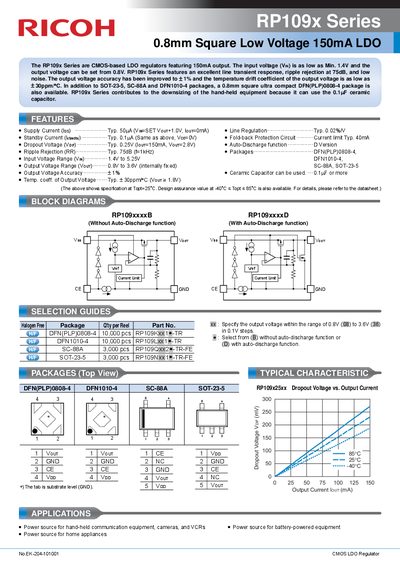

RP109x Series are CMOS-based LDO regulators featuring 150mA output. The input voltage (VIN) is as low as Min. 1.4V and the output voltage can be set from 0.8V. RP109x Series features an excellent line transient response, ripple rejection at 75dB, and low noise. The output voltage accuracy has been improved to ± 1% and the temperature drift coefficient of the output voltage is as low as ± 30ppm/°C. In addition to SOT-23-5, SC-88A and DFN1010-4 packages, a 0.8mm square ultra compact DFN(PLP)0808-4 package is also available. RP109x Series contributes to the downsizing of the hand-held equipment because it can use the 0.1μF ceramic capacitor.
The RP109x Series are CMOS-based Low Dropout (LDO) regulators featuring a 150mA output current. The input voltage can be as low as 1.4V, and the output voltage is adjustable from 0.8V to 3.6V with an accuracy of +1%. Key features include excellent line transient response, ripple rejection at 75dB, and a temperature drift coefficient as low as +30ppm/°C.
| Output Current (Iout) | 150mA |
|---|---|
| Input Voltage Range (Vin) | Min. 1.4V to 5.25V |
| Output Voltage Range (Vout) | 0.8V to 3.6V |
| Output Voltage Accuracy | +1% |
| Temperature Drift Coefficient | +30ppm/°C |
| Ripple Rejection (RR) | 75dB @ f=1kHz |
The RP109x Series features a 150mA output.
The input voltage is as low as 1.4V.
The output voltage can be set from 0.8V.
