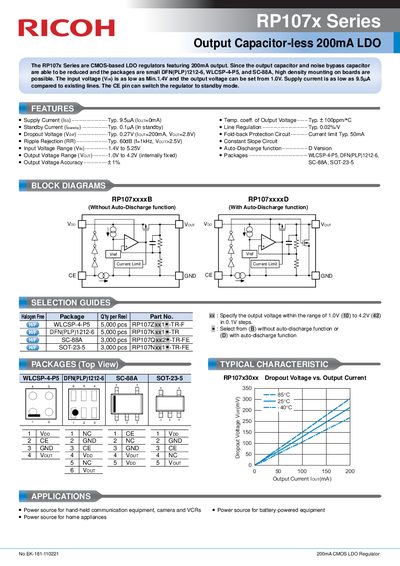

Ricoh RP107x Series Output Capacitor-less LDO Datasheet

The RP107x Series are CMOS-based LDO regulators featuring 200mA output

Brand: Ricoh
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 223 KB
Published: 09 July, 2012
Updated: 30 September, 2023
Model: RP107X
MD5 checksum: F3355A6FD671D28F85CC4289F7677F00
PDF: Ricoh RP107x Series Output Capacitor-less LDO Datasheet PDF

About this manual

The RP107x Series are CMOS-based LDO regulators designed for high-density mounting on boards. They feature a minimum input voltage of 1.4V and support output voltages ranging from 1.0V to 4.2V. The series offers low supply current, as low as 9.5nA in standby mode.

What's inside

Output Capacitor-less Operation
Package Options
Electrical Characteristics
Typical Application Circuits
Dropout Voltage vs Output Current

Specifications

Output Current	200mA
Input Voltage Range	4V to 5.25V
Output Voltage Range	1.0V to 4.2V
Supply Current (Typ)	9.5nA

Frequently asked questions

What is the maximum output current of this regulator?

The RP107x Series features a 200mA output.

What is the minimum input voltage required for operation?

The input voltage can be as low as 1.4V.

Which pin allows switching the regulator to standby mode?

The CE pin can switch the regulator to standby mode.
