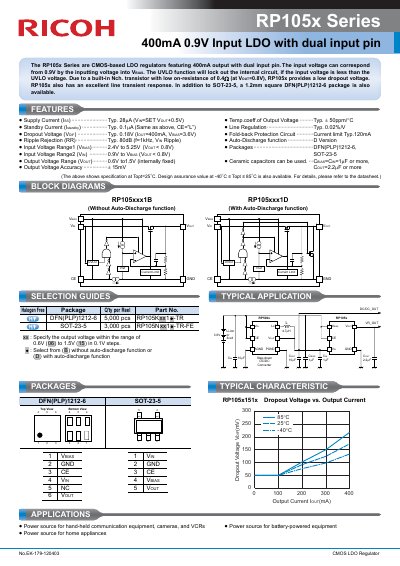

Ricoh RP105x Series 400mA LDO Regulator Product News

The RP105x series is a CMOS-based LDO regulator with 400mA output and dual input pins. The input voltage can range from 0.9V to VBIAS. It has a low dropout voltage and excellent line transient response.

Brand: Ricoh
Category: Other Electronics
Document type: Product Leaflet
Language: English
Pages: 2
File format: PDF
File size: 320 KB
Published: 09 July, 2012
Updated: 29 September, 2023
Model: RP105X
MD5 checksum: 83C6840FBF1171A0DA757C1214758DAD
PDF: Ricoh RP105x Series 400mA LDO Regulator Product News PDF

About this manual

The RP105x Series are CMOS-based LDO regulators featuring a 400mA output current and a unique dual input pin design. The input voltage can range from 0.9V, utilizing an internal N-channel transistor with low on-resistance to provide a low dropout voltage. These devices also include excellent line transient response and UVLO functions.

What's inside

Product Features
Specifications
Packages
Typical Application
Package Description

Specifications

Supply Current (Icc)	Typ. 28uA
Standby Current (Istandby)	Typ. 0.1nA
Ripple Rejection (RR)	Typ. 80dB
Output Voltage Accuracy	+/- 50ppm/°C
Line Regulation	Typ. 0.02%
Current Limit	Typ. 120mA

Frequently asked questions

What is the output current of the RP105x Series?

The RP105x Series features a 400mA output.

What is the minimum input voltage?

The input voltage can correspond from 0.9V.

Which packages are available for this series?

Available packages include SOT-23-5 and DFN(PLP)1212-6.
