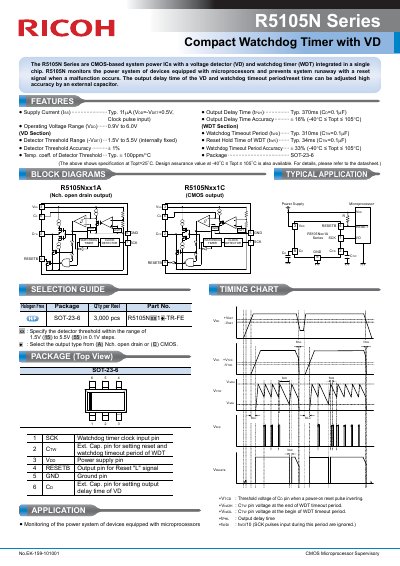

The R5105N series are CMOS-based system power ICs with a voltage detector (VD) and watchdog timer (WDT) integrated in a single chip. R5105N monitors the power system of devices equipped with microprocessors and prevents system runaway with a reset signal when a malfunction occurs. The output delay time of the VD and watchdog timeout period/reset time can be adjusted high accuracy by an external capacitor.
The R5105N Series are CMOS-based system power ICs that integrate a voltage detector (VD) and a watchdog timer (WDT). These devices monitor the power supply of systems equipped with microprocessors to prevent runaway conditions by issuing a reset signal when malfunctions occur. The output delay time for the VD and the watchdog timeout period can be accurately adjusted using external capacitors.
| Supply Current (Iss) | Typ. 11pA |
|---|---|
| Output Delay Time (tux) | Typ. 370ms |
| Operating Voltage Range (Vo) | 0.9V to 6.0V |
| Watchdog Timeout Period (two) | Typ. 310ms |
| Reset Hold Time of WDT (twr) | Typ. 34ms |
| Package Type | SOT-23-6 |
The series monitors the power system of devices equipped with microprocessors and prevents system runaway by sending a reset signal when a malfunction occurs.
The operating voltage range for the watchdog timer section is 0.9V to 6.0V.
The typical output delay time for the voltage detector is 370ms.
The typical watchdog timeout period is 310ms when using a 0.1pF capacitor.
