Start here

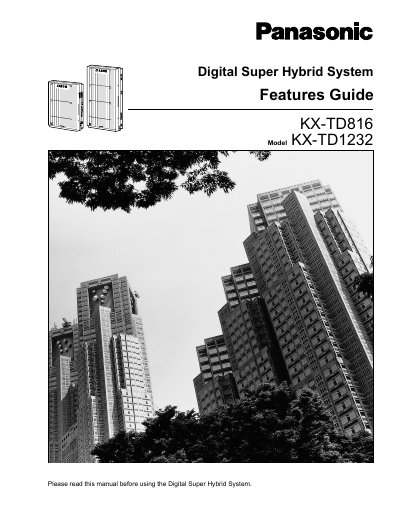

Panasonic KX-TD816/KX-TD1323 Manual
This Features Guide provides an overall reference of the capabilities of the Panasonic Digital Super Hybrid System, models KX‑TD816 and KX‑TD1232. It explains what the system can do and how to obtain the most out of its many features and capabilities.
The guide references additional manuals such as the Installation Manual, User Manual, Programming Guide and Programming Tables, which together cover installation, wiring, programming steps and detailed feature operation.
Panasonic KX-TD816 specifications
| Supported software version (KX‑TD816) | P341I, P342I or later |
|---|---|
| Supported software version (KX‑TD1232) | P241I, P242I or later |
| Supported Digital Proprietary Telephones | KX‑T7536, KX‑T7533, KX‑T7531, KX‑T7436, KX‑T7433, KX‑T7235, KX‑T7230 |
| Supported Analogue Proprietary Telephones | KX‑T7330, KX‑T7130, KX‑T7030, KX‑T7033 |
Source: Panasonic KX-TD816/KX-TD1232 Digital Super Hybrid System Programming Guide
All Panasonic KX-TD816 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Instruction set, parameters and examples for configuring or programming the device.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What software versions are required for programming the KX‑TD816?
The guide requires software version P341I, P342I or later for the KX‑TD816 system.
From: Panasonic KX-TD816/KX-TD1232 Digital Super Hybrid System Programming Guide
Which telephone sets can be used for system programming?
System programming can be performed with a Digital Proprietary Telephone (DPT) such as KX‑T7536 or an Analogue Proprietary Telephone (APT) like KX‑T7330.
From: Panasonic KX-TD816/KX-TD1232 Digital Super Hybrid System Programming Guide
What is the purpose of this Programming Guide?
It is designed to serve as an overall system programming reference for the Panasonic Digital Super Hybrid System, KX‑TD816 / KX‑TD1232.
Which other manuals are available for the KX‑TD816 system?
The system also has an Installation Manual, a Features Guide, and a User Manual.
