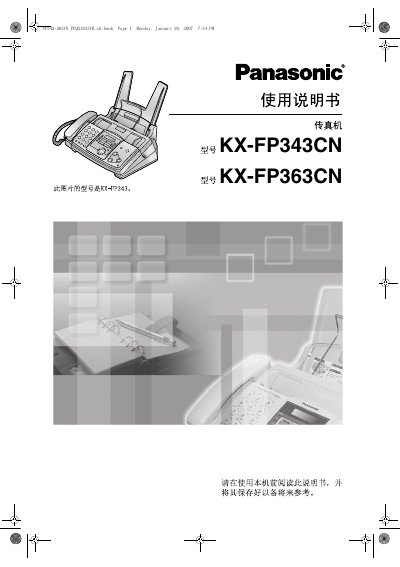

Panasonic KX-FP343CN / KX-FP363CN Fax Machine User Manual
This manual introduces the KX-FP343CN and KX-FP363CN fax machines, describing the supplied accessories, safety precautions, and how to install the printing ribbon and record paper. Detailed diagrams show the location and function of each button on the control panel.
The guide covers telephone and fax functions, copying, answering‑machine features, remote operation, programmable settings, and maintenance tasks such as cleaning and paper‑jam removal. A full index and technical specifications are provided at the end of the document. This manual is written in Chinese.
Panasonic KX-FP343C specifications
| Document size | A4 |
|---|---|
| Scanning resolution | 208 dpi |
| Transmission speed | 9.6 kbps |
| Power supply | 220‑240 V, 50/60 Hz |
| Dimensions (W×H×D) | 185 mm × 355 mm × 275 mm |
| Weight | 3.4 kg |
| Maximum stored pages | 28 pages (up to 25 without ECM) |
| Printing method | Thermal direct |
| Printing ribbon length | 70 m (10 m installed) |
Source: Panasonic KX-FP343CN Fax Manual
All Panasonic KX-FP343C documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
How many pages can the KX-FP343CN store in its memory?
It can store up to 28 pages, with a maximum of 25 pages when ECM is not used.
What is the scanning resolution of the KX-FP343CN?
The scanning resolution is 208 dpi.
What is the maximum amount of record paper the fax machine can hold?
It can hold up to 50 sheets of 75 g/m² paper.
From: Panasonic KX-FP343CN / KX-FP363CN Fax Machine User Manual
How many pages of paper can the fax machine hold?
The machine can hold up to 50 pages of 75 g/m² paper.
What safety precautions should be followed when cleaning the fax machine?
Always unplug the power cord before cleaning, use a damp cloth (no liquids or spray cleaners), and avoid cleaning near water sources.
Which replacement film should be used for the KX-FP343C?
Use the Panasonic KX-FA57E replacement film, sized 216 mm × 70 m, as specified in the parts section.
