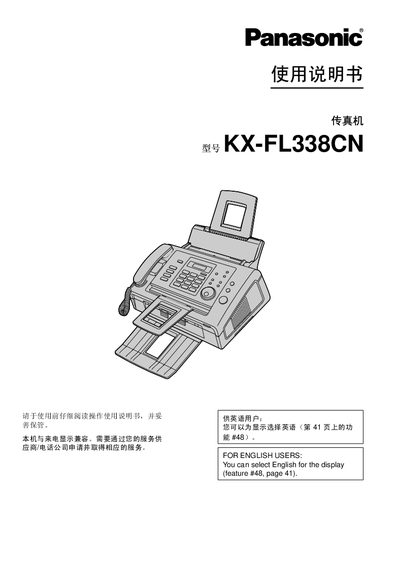

Panasonic KX-FL338CN Fax Manual
This manual provides safety information, installation procedures, and operating instructions for the Panasonic KX-FL338CN fax machine. It includes warnings about grounding, liquid exposure, and proper placement to prevent fire or electric shock.
The document also details component parts, consumables (toner and drum), maintenance tasks, and technical specifications such as laser output and supported paper size. A brief troubleshooting guide and parts list are included for service technicians. This manual is written in Chinese.
Panasonic KX-FL338CN specifications
| Applicable line | Public switched telephone network |
|---|---|
| Maximum document size | 216 mm × 600 mm |
| Transmission time per page | ≈ 4 seconds |
| Transmission power consumption | ≈ 12 W |
| Receive power consumption | ≈ 240 W |
| Maximum power (with lamp on) | ≈ 950 W |
| Power supply | 220‑240 V AC, 50/60 Hz, 4.3 A |
All Panasonic KX-FL338CN documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How can I change the display language?
Select English for the display using feature #48 on page 41.
What temperature range is recommended for operation?
Do not place the machine in a room colder than 10 °C or hotter than 32.5 °C.
