Start here

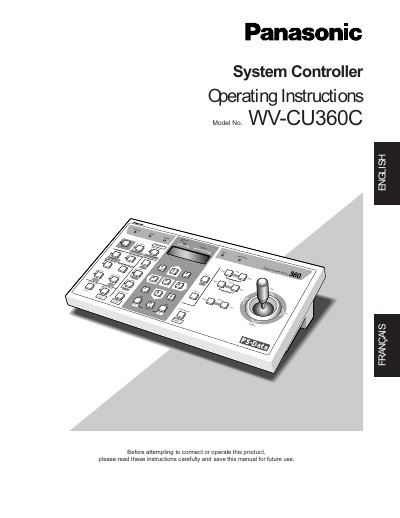

Panasonic WV-CU360C System Controller Operating Instructions
The Panasonic WV-CU360C is a system controller designed for the setup and operation of cameras and other units in a surveillance system. It operates using the Panasonic Security Data (PS-Data) protocol by default but can be configured via DIP switches to work with Video Multiplexer WJ-FS616C or Matrix Switcher systems (WJ-SX350, WJ-SX850). The device allows users to control camera functions such as pan/tilt, lens zoom, and focus from a single unit.
Read onlinePanasonic WV-CU360C specifications
| Temperature Range | -10°C - +50°C (14°F - 122°F) |
|---|---|
| Humidity Limit | below 90 % |
| Input Power Source | 120 V AC 60 Hz |
Source: Panasonic WV-CU360C System Controller Operating Instructions
All Panasonic WV-CU360C documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the default communication protocol for this controller?
The System Controller WV-CU360C is designed for setup and operation using the Panasonic Security Data (PS-Data) protocol by default.
From: Panasonic WV-CU360C System Controller Operating Instructions
Can this controller be used with other systems besides PS-Data?
Yes, DIP switches are provided to select communication protocols for Video Multiplexer WJ-FS616C or Matrix Switcher WJ-SX350 or WJ-SX850.
From: Panasonic WV-CU360C System Controller Operating Instructions
Which AC adapter should be used with the controller?
Only the supplied AC adapter should be used; other adapters are not permitted.
What is the purpose of the DIP switches on the rear panel?
The 8‑bit DIP switches set the communication parameters and operation mode for the controller, such as protocol selection and baud rate.
