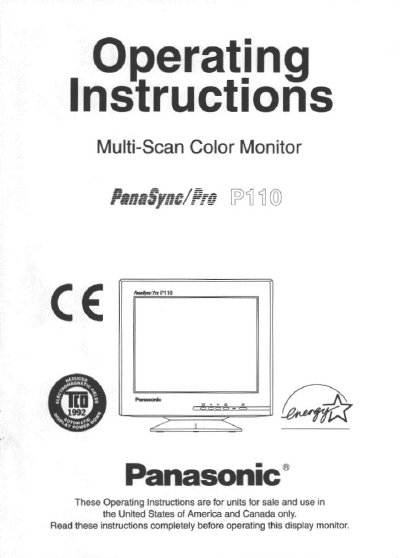

Panasonic P110 Multi-Scan Color Monitor Operating Instructions
This document provides operating instructions for the Panasonic P110 Multi-Scan Color Monitor. It includes important notices regarding power cord selection for various regions, safety warnings, and customer record details.
The manual covers precautions for installation, usage, and product care, along with a detailed table of contents outlining features, specifications, pin assignments, external view descriptions, on-screen adjustments, operation procedures, power management systems, memory functions, timing specifications, troubleshooting steps, and technical support information.
Panasonic P110 specifications
| Pick-up Device | Interline Transfer CCD |
|---|---|
| Scanning Area | 4.92 (H) x 3.70 (V) mm |
| Scanning System | 2:1 interlace |
| Horizontal Resolution | 480 lines |
| Video Output | 1.16 V[p-p] composite 75 Ω |
| Minimum Illumination | 0.6 lx |
| Lens Mount | CS-mount |
| Dimensions (without lens) | 71 (W) x 65 (H) x 125.5 (D) mm |
| Weights (without lens) | 0.46 kg |
Source: Panasonic WV-CP110 Color CCTV Camera Operating Instructions
All Panasonic P110 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Panasonic WV-CP110 Color CCTV Camera Operating Instructions 8 p
- Panasonic WV-BP110/WV-BP114 CCTV Camera User Manual 14 p
- Panasonic P110 Multi-Scan Color Monitor Operating Instructions 72 p
- Panasonic PanaSync/Pro P110i Monitor Manual 50 p
- Panasonic WX-RP110 Cardioid Dynamic Wireless Microphone Operation Instructions 14 p
Questions answered in these manuals
What is the maximum cable length for RG-59/U?
The approximate maximum cable length for RG-59/U is 200m (660 ft).
From: Panasonic WV-CP110 Color CCTV Camera Operating Instructions
What lens mount is required for this camera?
The lens mount should be a C-mount or CS-mount (1"-32UN).
From: Panasonic WV-CP110 Color CCTV Camera Operating Instructions
Can I use a fixed iris lens with this camera?
Yes, by using the Electronic Light Control (ELC) function, you can shoot indoor scenes with a fixed or manual iris lens.
How do I adjust the focus?
Rotate the Flange-back Adjusting Ring counterclockwise to adjust the back focal length or picture focus.
What type of power cord is required for the United States and Canada?
For units mounted on a desk or table, type SVT or SUT cord sets may be used. For units which sit on the floor, only SJT type cord sets may be used.
From: Panasonic P110 Multi-Scan Color Monitor Operating Instructions
What is required to maintain FCC compliance?
The user must use the provided grounded power supply cord and shielded interface cable with bonded ferrite cores.
From: Panasonic P110 Multi-Scan Color Monitor Operating Instructions
