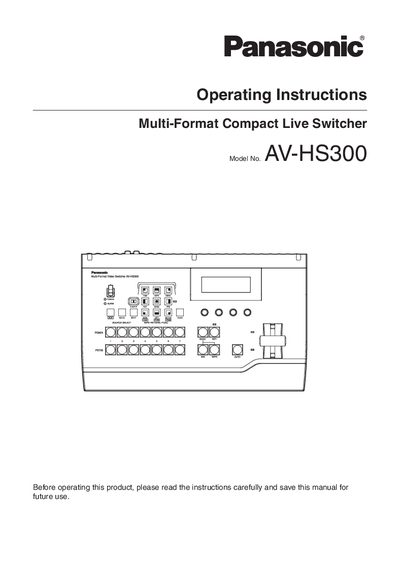

This document is the operating instructions for the AV-HS300 Multi-Format Compact Live Switcher. It includes safety precautions and operating details. The product is a class A digital apparatus that complies with Canadian standards.
The manual begins with safety precautions, warning against opening the unit, exposing it to moisture, and stressing proper ventilation and secure mounting. It also outlines the required accessories and proper power connections.
The document then describes the switcher's features, including six video inputs, three SDI outputs, support for HD and SD formats, Ethernet image import, and external control interfaces. Detailed sections cover the control panel, crosspoint and wipe areas, input/output configuration, network settings, and specifications.
| Video inputs | Six (five SDI, one DVI‑I) |
|---|---|
| Video outputs | Three SDI (PGM, PVW, AUX) |
| Supported HD formats | 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Supported SD formats | 480/59.94i, 576/50i |
| Analog component inputs | Optional HD analog component (x5) |
| Power supply | External DC 12 V |
The switcher provides six video inputs: five SDI inputs and one DVI‑I input.
It requires an external DC 12 V power supply.
