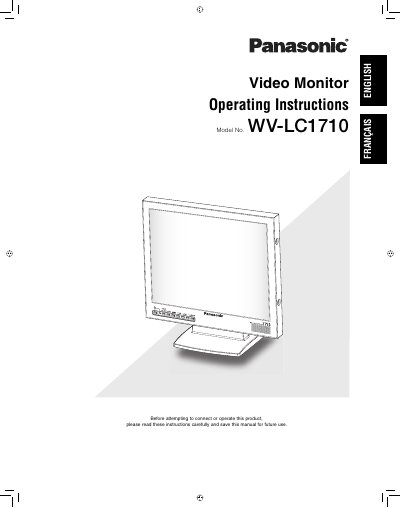

Panasonic WV-LC1710 Video Monitor Operating Instructions
This manual provides operating instructions for the Panasonic WV-LC1710, a 17-inch LCD video monitor featuring an SXGA panel with high contrast ratio and wide view angles. It supports multiple input types including Composite Video, S-Video, Component Video, and analog RGB signals from PCs.
Read onlinePanasonic WV-LC1710 specifications
| Panel Type | 17" type LCD Monitor |
|---|---|
| Resolution Support | VGA (640 × 480) ~ SXGA (1280 × 1024) |
| Operating Temperature | 0 °C ~ +40 °C |
| Humidity Rating | below 90 % |
| Input Power | 100 V AC to 240 V AC, 50/60 Hz |
| Speaker Output | maximum speaker output of 0.5 W |
Source: Panasonic WV-LC1710 Video Monitor Operating Instructions
All Panasonic WV-LC1710 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the supported resolution range for PC input?
The monitor supports resolutions from VGA (640 × 480) up to SXGA (1280 × 1024).
From: Panasonic WV-LC1710 Video Monitor Operating Instructions
Can the monitor be mounted on a wall?
Yes, it complies with VESA standards and can be mounted by installing a commercialized wall mount.
From: Panasonic WV-LC1710 Video Monitor Operating Instructions
What are the supported video resolutions?
The monitor supports resolutions from VGA (640 x 480) up to SXGA (1280 x 1024).
Can the monitor automatically switch between NTSC and PAL?
Yes, the monitor features an automatically switchable NTSC and PAL system.
