Start here

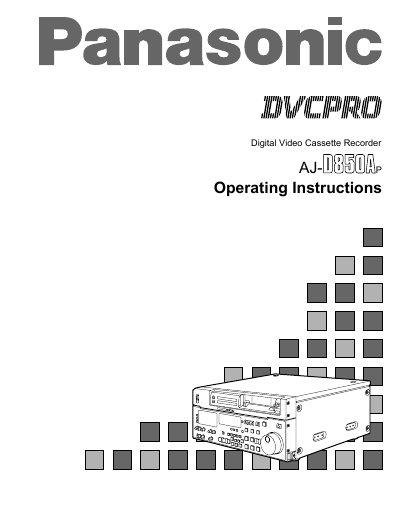

Panasonic AJD850A Digital Video Cassette Recorder Operating Instructions
This document provides operating instructions for the Panasonic AJD850A, a compact 4U digital video cassette recorder that uses 1/4-inch tapes. The unit incorporates digital compression technology to minimize quality deterioration during dubbing and supports both M and L cassette sizes, with consumer cassette compatibility via an optional adapter.
The manual details the functions of the front panel controls, including input selection for video and audio signals, and explains various recording and playback modes such as stop/standby, recording, and jog/shuttle. It also covers manual and automatic editing functions, signal adjustments, and setup procedures via menu-driven interfaces.
Panasonic AJD850 specifications
| Tape width | 1/4 inch |
|---|---|
| Max recording time (L cassette) | 184 minutes |
| Max recording time (M cassette) | 66 minutes |
| Unit size | 4U size |
| Audio memory capacity (internal) | 20 seconds |
| Audio memory capacity (with AJ-YA752) | 34 minutes 30 seconds |
Source: Panasonic AJD850A Digital Video Cassette Recorder Operating Instructions
All Panasonic AJD850 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Can consumer cassette tapes be played back?
Yes, consumer cassette tapes can be played back using the optional cassette adaptor (AJ-CS750P).
From: Panasonic AJD850A Digital Video Cassette Recorder Operating Instructions
Is slow motion playback possible with consumer cassette tapes?
No, slow motion playback is not possible with consumer cassette tapes.
From: Panasonic AJD850A Digital Video Cassette Recorder Operating Instructions
What editing functions are supported?
The unit supports both assemble and insert editing.
From: Panasonic AJD850 Digital Video Cassette Recorder Operating Instructions
What type of tapes does this recorder use?
This unit uses 1/4-inch digital video cassette tapes.
From: Panasonic AJD850 Digital Video Cassette Recorder Operating Instructions
