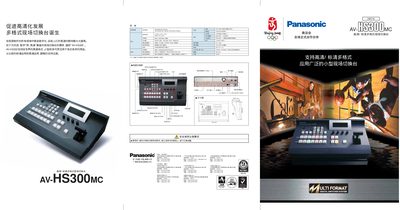

AV-HS300MC is a high-definition/standard-definition multi-format switchboard launched by Panasonic. It supports SD(480/58.94i.576/50i) and HD(1080/59.94i.1080/50i.720/59.94p.720/50p) formats. It supports CUT, MIX, WIPE(9 modes 3 directions), Linear Key/Selfkey switching effects. It supports SXGA 1280× 1024 and XGA 1024× 768(60 Hz) two resolutions. It is small in size and suitable for various occasions.
The AV‑HS300MC is a small‑form‑factor digital switcher that supports both SD and HD video formats, offering flexible live‑production functions such as Cut, Mix, Wipe, Linear Key and Self‑Key. It is designed for indoor and outdoor use, with a compact size that fits into a 2.5 RU rack.
The manual covers safety precautions, power requirements, physical dimensions, video input/output connections, control interfaces (Tally, RS‑422, Ethernet), and detailed operating procedures. Technical service contact information for regional support centers is also provided. This manual is written in Chinese.
| Dimensions | 410 mm × 103.5 mm × 240 mm |
|---|---|
| Weight | ≈ 3.2 kg |
| SDI Inputs | 5 BNC inputs (HD/SD) |
| SDI Outputs | 3 BNC outputs (PGM, PVW, AUX) |
| Tally Outputs | 6‑channel Tally |
| Control Interfaces | RS‑422 and Ethernet |
The unit measures 410 mm × 103.5 mm × 240 mm (excluding protruding parts).
The switcher provides five BNC SDI inputs for HD/SD signals.
