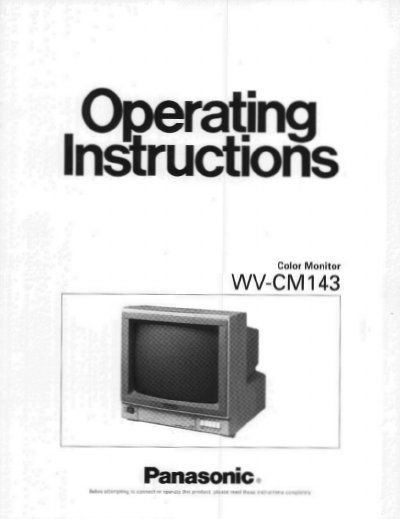

Panasonic WV-CM143 Color Monitor User Manual
User Manual 22 pages · 804 KB · EN
This manual provides instructions for the Panasonic WV-CM143 Color Monitor, a device designed for use with specified Color CCTV cameras. It supports up to four cameras with sequential or manual switching capabilities and includes features like alarm control output and spot monitoring.
Read onlinePanasonic WV-CM143 specifications
| Diagonal CRT Size | 37 cm (14") |
|---|---|
| Actual Visual Size | Approx. 13" diagonal |
| Speaker Output | Max. of 1.0 W |
| Input Power | 120 V AC 60 Hz |
| Operating Temperature | -10°C - +50°C |
| Operating Humidity | Below 90 % |
| Video Input Type | Composite NTSC |
| Max Cable Length (RG-59/U) | 250 m |
All Panasonic WV-CM143 documents by type
User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I turn the monitor on and off?
Use the push-push type Power Switch; press once to turn on and press again to turn off.
Can I mount this monitor in a rack?
Yes, it is rack-mountable using the optional Rack Angle Bracket WV-Q104.
How many cameras can be connected to the monitor?
Up to four cameras can be connected with this monitor.
What is the function of the Spot Monitor Control In terminals?
They are used to connect intercom or alarm sensors for spot monitoring by short circuit between terminal 1, 2, 3 or 4 and ground.
