Start here

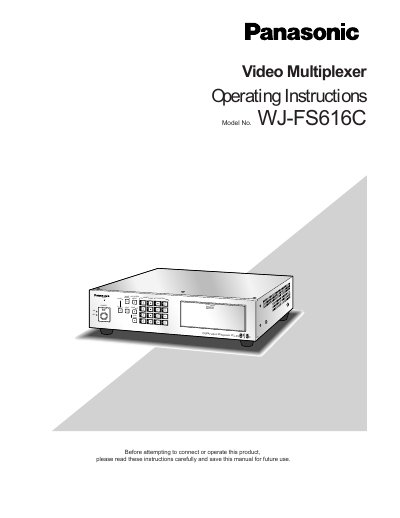

Panasonic WJ-FS616C Video Multiplexer Operating Instructions
The Panasonic WJ-FS616C is a video multiplexer designed to combine field signals from up to 16 cameras for monitoring on multiscreen or spot displays. It supports electronic zoom, freeze, and sequence modes, allowing users to view images in various segment configurations ranging from 4 to 16 screens.
Read onlinePanasonic WJ-FS616 specifications
| Maximum connected cameras | 16 |
|---|---|
| Expansion capability | up to 64 cameras |
| Spot sequence steps | 32 |
| Multiscreen sequence steps | 5 |
| Operating temperature range | -10°C - +50°C (14°F - 122°F) |
| Relative humidity limit | below 90 % |
| Input power source | 120 V AC 60 Hz |
Source: Panasonic WJ-FS616C Video Multiplexer Operating Instructions
All Panasonic WJ-FS616 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the available multiscreen segment options?
The unit supports 4, 7, 9, 10, 13, and 16-segment screens.
From: Panasonic WJ-FS616C Video Multiplexer Operating Instructions
Can the unit control camera functions like zooming?
Yes, it allows control of lens focussing, zooming, iris positioning, and pan/tilt head positioning.
From: Panasonic WJ-FS616C Video Multiplexer Operating Instructions
How many cameras can be connected to the WJ-FS616?
Up to 16 cameras can be connected to the unit for monitoring.
Can the system be expanded to more than 16 cameras?
Yes, the system allows expansion to up to 64 cameras.
