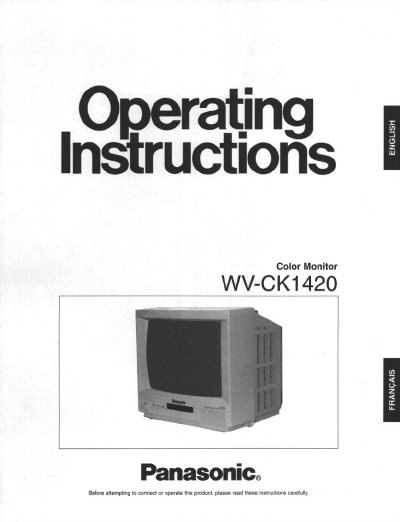

Panasonic WV-CK1420 Color Monitor User Manual
This manual provides instructions for the Panasonic WV-CK1420 Color Monitor, a 13-inch diagonal display featuring BNC and RCA connectors for video and audio. It details the operation of major controls including the power switch, audio volume, and menu settings for adjusting brightness, contrast, and color. The guide also explains how to connect the monitor to video sources and outboard audio devices using the provided looping connectors.
Read onlinePanasonic WV-CK1420 specifications
| Screen Size | Approx. 335.4mm (13 inches) diagonal actual visual size |
|---|---|
| Power Source | 120V AC, 60Hz |
| Power Consumption | Approx. 60W |
| Horizontal Resolution | 370TV lines at center |
| Speaker Output | Maximum 0.7W |
| Ambient Operating Temperature | -10°C - +50°C (14°F-122°F) |
All Panasonic WV-CK1420 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I reset the monitor to factory default settings?
Move the cursor to MONITOR RESET in the setup display and press the LEVEL (+) button.
What type of cable is required for the video connection?
You must use shielded BNC cables, such as RG-59/U, RG-6/U, RG-11/U, or RG-15/U.
What languages are supported in the setup menu?
The monitor supports English, French, and Spanish.
From: Panasonic WV-CK1420A Color Monitor Operating Instructions
How do I reset the monitor to factory defaults?
Move the cursor to MONITOR RESET in the setup display and press the LEVEL (+) button.
From: Panasonic WV-CK1420A Color Monitor Operating Instructions
