Start here

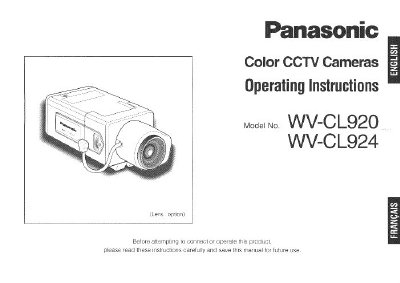

Panasonic WV-CL920/WV-CL924 Color CCTV Camera Operating Instructions
This manual provides operating instructions for the Panasonic WV-CL920 and WV-CL924 series digital color cameras. These cameras utilize a 1/2-inch frame interline transfer CCD image sensor with 768 horizontal pixels and digital signal processing LSI's to deliver high picture quality and resolution for advanced video surveillance applications.
Read onlinePanasonic WV-CL924 specifications
| Image Sensor | 1/2-inch frame interline transfer CCD |
|---|---|
| Horizontal Pixels | 768 horizontal pixels |
| Minimum Illumination (Color) | 0.14 lx with F1.4 lenses |
| Minimum Illumination (B/W) | 0.01 lx with F1.4 lenses |
| Horizontal Resolution (Color) | 480 lines |
| Horizontal Resolution (B/W) | 570 lines |
| Signal-to-noise ratio | 50 dB |
Source: Panasonic WV-CL920A/WV-CL924A Color CCTV Camera Operating Instructions
All Panasonic WV-CL924 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the input power source for the WV-CL920A?
The input power source is 120 V AC 60 Hz.
From: Panasonic WV-CL920A/WV-CL924A Color CCTV Camera Operating Instructions
What is the input power source for the WV-CL924A?
The input power source is 12 V DC or 24 V AC.
From: Panasonic WV-CL920A/WV-CL924A Color CCTV Camera Operating Instructions
What is the minimum illumination for the WV-CL920 in color mode?
The minimum illumination is 0.3 lux (0.03 footcandle) with F1.4 lenses.
From: Panasonic WV-CL920/WV-CL924 Color CCTV Camera Operating Instructions
What is the operating temperature range for this camera?
The camera should be operated where the temperature is between -10°C and +50°C.
From: Panasonic WV-CL920/WV-CL924 Color CCTV Camera Operating Instructions
