Start here

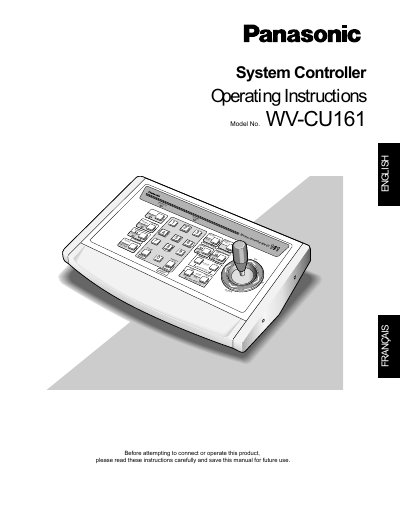

Panasonic WV-CU161 System Controller Operating Instructions
The Panasonic WV-CU161 is a system controller designed for one-to-one use with combination cameras such as the WV-CS854 or WV-RC100. It performs remote control of pan/tilt, lens functions (iris, focus, zoom), and preset data management via multiplexed signals or RS-485 communication.
The manual details operating procedures for camera controls including joystick navigation, alarm reset/suspend operations, and setup menu configurations. It also covers installation precautions, rack mounting instructions, and specifications regarding power requirements and environmental limits.
Panasonic WV-CU161 specifications
| Input Power Source | 120 V AC 60 Hz |
|---|---|
| Operating Temperature | -10°C to +50°C (14°F - 122°F) |
| Operating Humidity | below 90 % |
Source: Panasonic WV-CU161 System Controller Operating Instructions
All Panasonic WV-CU161 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What combination cameras are compatible with the WV-CU161?
It is designed for one-to-one use with Combination Cameras such as the WV-CS854/WV-CS654/WV-CS604 or the WV-RC100/WV-RC150 Receiver.
From: Panasonic WV-CU161 System Controller Operating Instructions
Can the WV-CU161 control audio signals?
No, the unit does not provide functions to control audio signals, and audio communication is not possible regardless of installed audio boards.
From: Panasonic WV-CU161 System Controller Operating Instructions
What is the WV-CU161C designed for?
It is designed for one-to-one use with a Combination Camera or WV-RC100/WV-RC150 Receiver that is provided with camera control functions.
From: Panasonic WV-CU161C System Controller Operating Instructions
How can the controller transmit camera control commands?
The controller can transmit commands via an RS-485 line or a coaxial cable.
From: Panasonic WV-CU161C System Controller Operating Instructions
