Start here

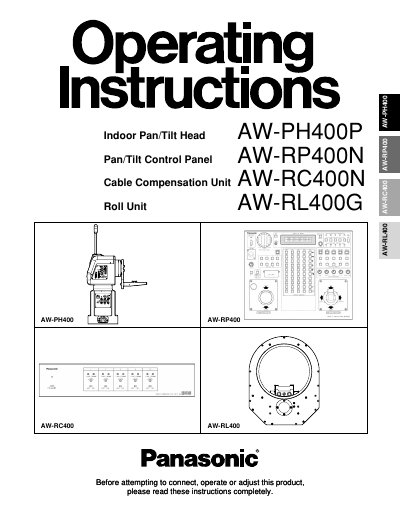

Panasonic AW-PH400P/RP400N/RC400N/RL400G Manual
The document serves as a comprehensive user guide for four specific Panasonic video camera support units: the AW-PH400 Indoor Pan/Tilt Head, the AW-RP400 Pan/Tilt Control Panel, the AW-RC400 Cable Compensation Unit, and the AW-RL400 Roll Unit. It covers safety precautions, installation procedures including assembly and mounting, operational settings, and maintenance instructions for each component.
Read onlinePanasonic AW-PH400 specifications
| Vertical Rotation Range | 300 degrees |
|---|---|
| Horizontal Rotation Range | 400 degrees |
| Maximum Operation Speed | 90 degrees per second |
| Maximum Load Capacity | 17.6 lbs (8 kg) |
| Preset Memory Data | 50 positions |
All Panasonic AW-PH400 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What battery type is required for the AW-PH400?
The unit uses a manganese dioxide-lithium battery (CR2032).
Can the AW-PH400 be controlled by older Panasonic controllers?
No, it cannot be controlled from the AW-RP301, AW-RP305, AW-RP501, AW-RP505, AW-RP605 or AW-RP605A controller.
What battery is required for the AW-PH400?
The unit uses a manganese dioxide-lithium battery (CR2032).
From: Panasonic AW-PH400/AW-RP400/AW-RC400/AW-RL400 Installation and Operation Instructions
Can the unit be used outdoors?
No, do not use the units outdoors.
From: Panasonic AW-PH400/AW-RP400/AW-RC400/AW-RL400 Installation and Operation Instructions
What equipment can the AW-PH400 carry?
The manual lists cameras and lenses, with a maximum total weight of 8 kg.
How many shooting positions can be stored as presets?
The AW-PH400 can register settings for up to 50 shooting positions as preset data.
