Key facts
- Brand
- Panasonic
- Model
- GP-US522H
- Category
- Video Decoder
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-08
Start here

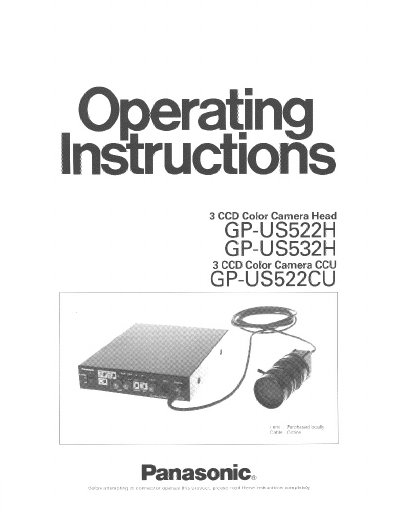

Panasonic GP-US522H/GP-US532H/GP-US522CU Manual
This manual provides instructions for the Panasonic GP-US522H and GP-US532H industrial digital signal processing color 3-CCD cameras. It details the features of the camera head and camera control unit (CCU), including high-performance micro prism optical systems and digital signal processing for stable images.
Read onlinePanasonic GP-US522H specifications
| Horizontal Resolution | 800 lines (GP-US522) / 750 lines (GP-US532) |
|---|---|
| Signal to Noise Ratio | 62 dB |
| Operation Voltage | 12V DC |
| Operating Temperature | 0°C - +45°C |
| Operating Humidity | below 90% |
All Panasonic GP-US522H documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the minimum scene illumination for the GP-US522?
The minimum scene illumination is 5 lux at F2.8.
What is the minimum scene illumination for the GP-US532?
The minimum scene illumination is 9 lux at F2.2.
What is the minimum scene illumination for the GP-US522 model?
The minimum scene illumination is 5 lx at F2.8 with +18 dB gain.
From: Panasonic GP-US522HA/532HA 3 CCD Camera Head Operating Instructions
What is the operating temperature range for the camera?
The camera must be used between 0°C and +45°C.
From: Panasonic GP-US522HA/532HA 3 CCD Camera Head Operating Instructions
