Key facts
- Brand
- Panasonic
- Model
- AJ-D90
- Category
- Digital Video Recorder
- Documents
- 3
- Languages
- EN · ZH
- Last added
- 2012-08-09
Start here

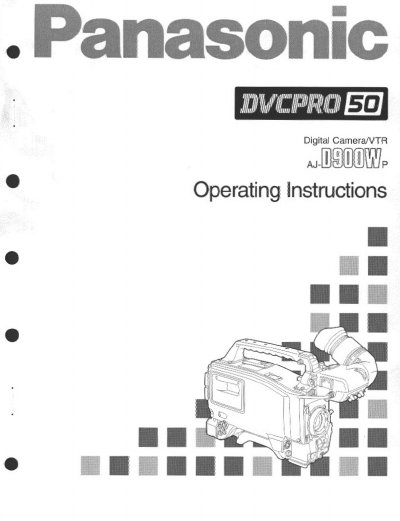

Panasonic AJD900WP Digital Camera/VTR Operating Instructions
The Panasonic AJD900WP is an integrated unit combining a 3-CCD color video camera with M-FIT CCDs and a 520,000-pixel on-chip lens with a DVCPRO format VTR. It features digital signal processing, a setting menu displayed on the viewfinder, and supports various battery packs including Anton Bauer, Panasonic AU-BP402, and Sony models.
The unit allows switching between 16:9 and 4:3 aspect ratios and offers recording rates of 50 Mbps for high quality or 25 Mbps for longer duration. Key features include a high-function electronic shutter with synchro scan mode, adjustable gain from -3 dB to +30 dB, and the ability to store setup data on SRAM or ATA flash memory cards.
Panasonic AJ-D90 specifications
| CCD Type | 3-CCD color video camera |
|---|---|
| Pixel Count | 520,000-pixel on-chip lens |
| Sensitivity | 2000 lux (F9) |
| S/N Ratio | 63 dB (standard) |
| AD/DA Converter | 18 MHz (typ.) 10-bit |
| Gain Range | -3 dB to +30 dB |
| Aspect Ratio | 16:9 and 4:3 |
| Recording Rates | 50 Mbps or 25 Mbps |
Source: Panasonic AJD900WP Digital Camera/VTR Operating Instructions
All Panasonic AJ-D90 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I replace the backup battery?
The manual includes a specific section on replacing the backup battery, which is necessary for maintaining time code and date settings.
From: Panasonic AJD900WP Digital Camera/VTR Operating Instructions
Can I use memory cards for setup data?
Yes, SRAM memory cards of 64 kilobytes or greater conforming to PCMCIA standards can be used for setup data, and ATA flash memory cards of 4 MB or more are required for the Picture Link function.
From: Panasonic AJD900WP Digital Camera/VTR Operating Instructions
Can the AJ-D90 be used with Sony batteries?
Yes, the manual describes using the NP-1 battery pack made by Sony.
From: Panasonic AJD90P Manual
What is the accuracy of the back-space assemble recording?
The back-space assemble recording is ensured with an accuracy of within one frame.
From: Panasonic AJD90P Manual
What is the weight of the Panasonic AJ-D908MC?
The camcorder weighs 3.9 kg.
What are the physical dimensions of the AJ-D908MC?
Its dimensions are 129 mm wide, 204 mm high and 313 mm deep.
