Start here

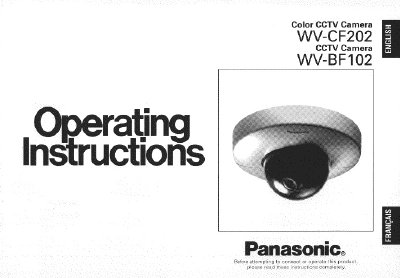

Panasonic WV-CF202 CCTV Camera Operating Instructions
This document provides operating instructions for the Panasonic WV-CF202 and WV-BF102 CCTV cameras. These mini-dome cameras are designed for advanced video surveillance and feature a 1/4-inch interline transfer CCD image sensor with a one-chip signal processor. The manual details the features, precautions, and major operating controls for both models.
Read onlinePanasonic WV-CF20 specifications
| Image Sensor | 1/3-inch interline transfer CCD |
|---|---|
| Resolution | 330,000 pixels |
| Built-in Controls | Auto Gain Control (AGC) and Auto Tracking White Balance Control (ATW) |
| Audio | Built-in internal microphone |
| Max Cable Length (3C-2V) | 200m |
| Max Cable Length (5C-2V) | 500m |
| Operating Temperature | -10°C to +50°C |
| Max Humidity | 90% |
Source: Panasonic WV-CF20 Color CCTV Camera Operating Instructions
All Panasonic WV-CF20 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Is the camera designed for indoor or outdoor use?
The camera is designed for indoor use only.
From: Panasonic WV-CF20 Color CCTV Camera Operating Instructions
Can the audio function be used without an optional unit?
No, audio is available only by connection with the optional Camera Drive Unit, WV-PS11A.
From: Panasonic WV-CF20 Color CCTV Camera Operating Instructions
What is the operating temperature range for this camera?
The camera should be operated where the temperature is between -10°C and +50°C.
What type of power supply is required?
The camera requires a 12V DC power supply, specifically a UL listed wire VW-1, style 1007 cable.
