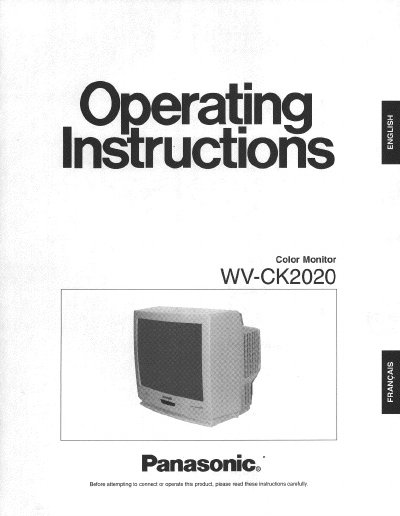

Panasonic WV-CK2020 Color Monitor User Manual
The Panasonic WV-CK2020 is a 20-inch diagonal actual visual size color monitor featuring built-in audio output with a maximum of 0.7W speaker power. It supports looping through BNC connectors for video and RCA connectors for audio, allowing connection to multiple devices or monitors in a chain configuration.
The document details the major operating controls including Power, Audio Volume, Menu, Level adjustment, and Indicator lights. Users can adjust picture settings such as Brightness, Contrast, Picture mode, Color, and Tint via an on-screen menu. The manual also covers safety precautions, cable information for video and power connections, and technical specifications.
Panasonic WV-CK2020 specifications
| Screen Size (Visual) | 508.0 mm (20 inches) diagonal actual visual size |
|---|---|
| Speaker Output Power | Maximum 0.7W |
| Power Source | 120V AC, 60Hz |
| Power Consumption | Approx. 75W |
| Horizontal Resolution | 500TV lines at center |
| Video Input Impedance | 75Ω with Auto Termination |
| Ambient Operating Temperature | -10°C to +50°C (14°F-122°F) |
| Dimensions (WxHxD) | 509 x 467 x 480 mm |
| Weight | 21kg (46.3 lbs.) |
All Panasonic WV-CK2020 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum ambient temperature for operating this monitor?
The monitor can operate in temperatures ranging from -10°C to +50°C.
How much power does this monitor consume approximately?
This monitor consumes approximately 75W of power.
How do I reset the monitor to factory defaults?
Move the cursor to MONITOR RESET in the setup display and press the LEVEL (+) button.
From: Panasonic WV-CK2020A Color Monitor Operating Instructions
Which cables are recommended for video connection?
The manual recommends RG-59/U, RG-6/U, RG-11/U, or RG-15/U coaxial cables.
From: Panasonic WV-CK2020A Color Monitor Operating Instructions
