Panasonic AW-RC400 Manuals

Key facts

Brand: Panasonic
Model: AW-RC400
Documents: 2
Languages: EN
Last added: 2012-08-09

Start here

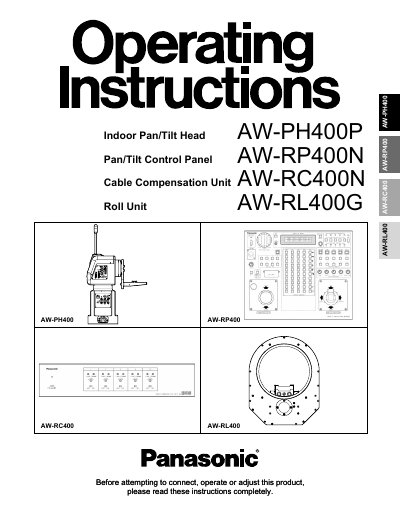

Panasonic AW-RC400N Cable Compensation Unit User Manual

User Manual 64 pages · 1.4 MB · EN

This document is the user manual for the Panasonic AW-RC400N Cable Compensation Unit. It provides instructions for installation, including how to assemble the unit, set mounting direction switches, and install it into a rack system. The manual also covers operating precautions and maintenance procedures.

Read online

Panasonic AW-RC400 specifications

Vertical Rotation Range	300 degrees
Horizontal Rotation Range	400 degrees
Maximum Operation Speed	90 degrees per second
Maximum Load Capacity	17.6 lbs (8 kg)
Preset Memory Data	50 positions

Source: Panasonic AW-PH400/AW-RP400/AW-RC400/AW-RL400 Installation and Operation Instructions

All Panasonic AW-RC400 documents by type

User Manual 2

Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.

Questions answered in these manuals

What is the maximum weight the AW-PH400 can support?

The unit can support a total weight of 17.6 lbs (8 kg), and it cannot be used if the load exceeds this amount.

From: Panasonic AW-RC400N Cable Compensation Unit User Manual

What are the operating temperature limits for the AW-PH400?

Do not install the unit in places where the temperature will be hotter than 113°F (45°C) or colder than 32°F (0°C).

From: Panasonic AW-RC400N Cable Compensation Unit User Manual

What battery is required for the AW-PH400?

The unit uses a manganese dioxide-lithium battery (CR2032).

From: Panasonic AW-PH400/AW-RP400/AW-RC400/AW-RL400 Installation and Operation Instructions

Can the unit be used outdoors?

No, do not use the units outdoors.
