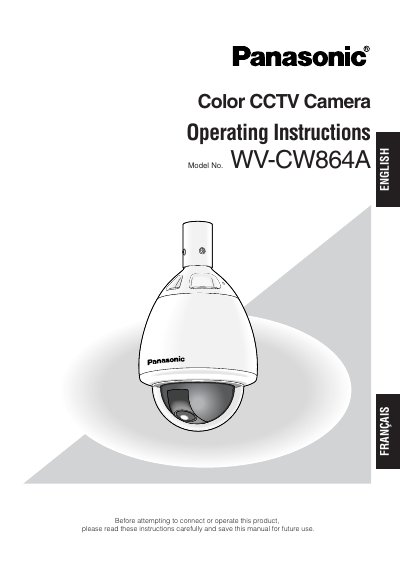

Panasonic WV-CW864A Color CCTV Camera Operating Instructions
The Panasonic WV-CW864A is a compact outdoor color CCTV camera designed for video surveillance systems. It features a built-in digital signal processor, pan/tilt mechanism, x22 zoom lens, and an RS485 communication interface. The unit includes a newly developed 1/4" CCD sensor suitable for low-light conditions and incorporates a heater and fan within its IP66-rated enclosure.
Read onlinePanasonic WV-CW864 specifications
| CCD Size | 1/4" |
|---|---|
| Resolution | 768 x 494 pixels |
| Preset Positions | 64 |
| Operating Temperature | -30°C to +50°C |
| Input Power | 24 V AC |
Source: Panasonic WV-CW864 Color CCTV Camera Operating Instructions
All Panasonic WV-CW864 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many preset positions can the camera store?
The camera can store 64 preset positions.
From: Panasonic WV-CW864 Color CCTV Camera Operating Instructions
What is the maximum operating temperature?
The camera should be used where temperatures are between -30°C and +50°C.
From: Panasonic WV-CW864 Color CCTV Camera Operating Instructions
Can the camera be used in low light conditions?
Yes, it is suitable for use under extremely low illumination conditions as well as in daylight.
From: Panasonic WV-CW864A Color CCTV Camera Operating Instructions
What should be done if noise appears on the monitor screen?
Activate the refresh mode on the special 2 menu.
From: Panasonic WV-CW864A Color CCTV Camera Operating Instructions
What is the input power requirement for each model?
The WV‑CW860 requires 220‑240 V AC, while the WV‑CW864E runs on 24 V AC.
How many preset positions can the camera store?
The camera can store up to 64 preset positions.
