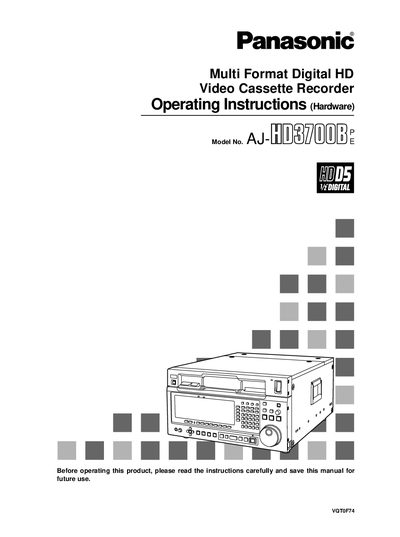

Panasonic AJHD3700B Multi Format Digital HD Video Cassette Recorder Operating Instructions
This document provides operating instructions for the Panasonic AJHD3700B Multi Format Digital HD Video Cassette Recorder. It details safety precautions, features, and the layout of the front panel and connector sections.
The manual covers basic operations including recording and playback, as well as various editing functions such as manual editing, automatic insert/assemble editing, audio split editing, and the variable memory function. It also includes information on connections for single or dual units, video head cleaning, rack-mounting, troubleshooting, dip switch settings, and technical specifications.
Panasonic AJ-HD3700B specifications
| Power consumption | 260 W |
|---|---|
| Weight | 69.96 lbs |
| Dimensions | 5U height, 20'/2" depth |
| Signal‑to‑noise ratio | 60 dB |
Source: Panasonic AJ-HD3700B Video Cassette Recorder Operating Instructions
All Panasonic AJ-HD3700B documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What type of tapes are required for this VTR?
This unit is designed for metal tapes only, and ordinary VHS tapes cannot be used.
From: Panasonic AJHD3700B Multi Format Digital HD Video Cassette Recorder Operating Instructions
What is the fuse rating for the UK mains plug?
A 13 amp fuse is fitted in the moulded three pin mains plug supplied for the UK.
From: Panasonic AJHD3700B Multi Format Digital HD Video Cassette Recorder Operating Instructions
What must be done before opening the unit for service?
The power must be turned off and the unit must be grounded before opening it.
From: Panasonic AJ-HD3700B Video Cassette Recorder Operating Instructions
How should the AC mains plug be replaced?
Use a 13 amp fuse, ensure the plug wiring follows the colour code, and replace the fuse cover if removed.
From: Panasonic AJ-HD3700B Video Cassette Recorder Operating Instructions
What video formats does the AJ‑HD3700B support?
It records and plays back HD formats such as 1080/50i, 1080/25P, 1080/59.94i and 720/59.94P, as well as SD formats 576/50i and 480/59.94i.
How many digital audio channels are available?
The unit provides eight 24‑bit digital audio channels with a 48 kHz sampling rate.
