Key facts
- Brand
- Panasonic
- Model
- AJ-D815MC
- Category
- Camcorders
- Industry
- Electronics
- Documents
- 2
- Languages
- ZH · JA
- Last added
- 2012-03-13
Start here

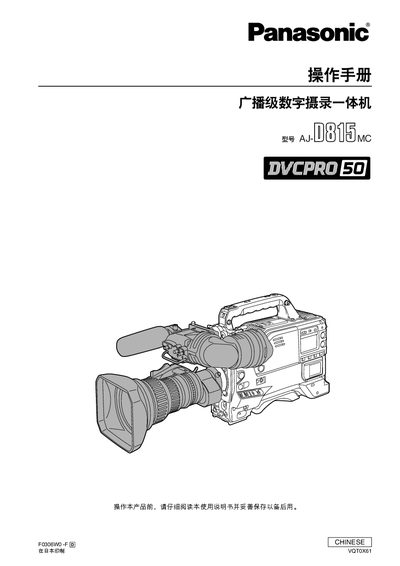

Panasonic AJ-D815MC User Manual
This manual covers safety precautions, installation steps, and proper handling of the AJ-D815MC camcorder. It explains the functions of each component, including the CCD sensor, audio inputs, and external accessories, and provides guidance for optimal operation.
Detailed sections describe system settings, recording modes such as DVCPRO and DVCPRO50, file management with SD cards, and maintenance procedures. The final chapter lists the full technical specifications and connector pinouts. This manual is written in Japanese.
Panasonic AJ-D815MC specifications
| Image Sensor | 2/3 inch 600,000‑pixel 3‑CCD |
|---|---|
| Lens | F1.4, 13 mm focal length |
| Super Gain (Maximum) | +68 dB |
| Bit Depth | 12‑bit |
| Audio Sample Rate | 48 kHz, 16‑bit |
| Signal‑to‑Noise Ratio | 62 dB |
| Weight (Full) | 5.1 kg |
| Weight (Body Only) | 4.1 kg |
| Recording Time (Continuous) | Up to 120 minutes |
| User Presets | 8 presets (stored on SD or Multi‑Media card) |
All Panasonic AJ-D815MC documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum super gain available on the AJ‑D815MC?
The camcorder provides a maximum digital super gain of +68 dB.
How many user preset files can be stored on the camera?
Up to eight user preset files can be saved to the internal memory or an SD/Multi‑Media card.
What video formats does the AJ-D815MC support?
The camcorder supports DVCPRO and DVCPRO50 recording formats.
