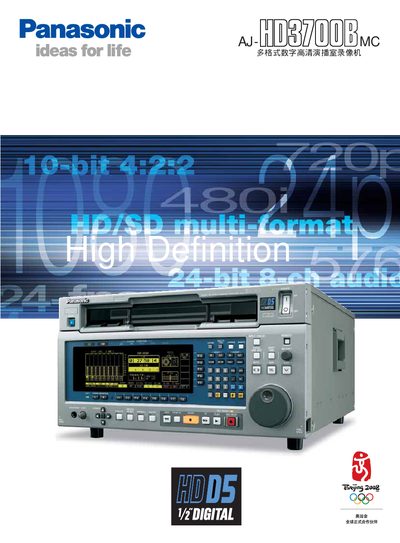

User manual for the Panasonic AJ‑HD3700B studio VCR covering video formats, audio channels, interfaces and installation.
The Panasonic AJ‑HD3700B is a multi‑format studio VCR designed for high‑definition recording and playback. It supports a wide range of HD and SD video formats and provides full editing capabilities, including format conversion and time‑code functions.
The manual details the unit’s audio specifications, HD‑SDI and other I/O connectors, rack‑mount installation, fast‑search and editing features, as well as technical specifications such as power consumption, dimensions and environmental limits. This manual is written in Chinese.
| Power consumption | 260 W |
|---|---|
| Weight | 31.8 kg |
| Dimensions (W × H × D) | 424 mm × 220 mm × 520 mm |
| Audio channels | 8 channels, 24‑bit, 48 kHz |
| HD‑SDI inputs | 2 BNC connectors (1.5 Gbps) |
| HD‑SDI outputs | 3 BNC connectors (1.5 Gbps) |
| Recording/playback time (1080/50i) | 149 minutes |
It records and plays back HD formats such as 1080/50i, 1080/25P, 1080/59.94i and 720/59.94P, as well as SD formats 576/50i and 480/59.94i.
The unit provides eight 24‑bit digital audio channels with a 48 kHz sampling rate.
The VCR consumes 260 W of power.
Yes, it fits into a 19‑inch rack and can be easily mounted in an OB‑truck.
