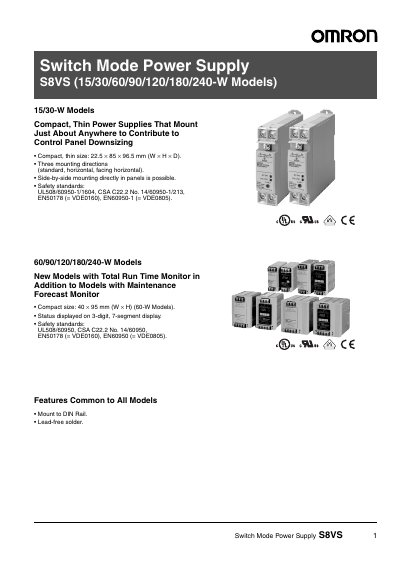

OMRON Switch Mode Power Supply S8VS (15/30/60/90/120/180/240-W Models) handbook
This handbook covers the Omron S8VS switch‑mode power supply family, ranging from 15 W to 240 W models. It includes model‑number structure, electrical ratings, mechanical dimensions, safety compliance, and connection diagrams.
Installation guidance describes three mounting directions, DIN‑rail mounting, and wiring conventions, while the specifications section lists input voltage range, output voltage options, efficiency, weight, and other key performance data.
Omron S8VS specifications
| Input Voltage | 100 to 240 VAC (85 to 264 VAC) |
|---|---|
| Output Voltage Options | 5 V, 12 V, 24 V |
| Typical Efficiency (5‑V models) | 72% min. (76% typ.) |
| Dimensions (W × H × D) | 22.5 × 85 × 96.5 mm |
| Weight | 160 g max. |
| Mounting | DIN‑rail, panel mounting, three directions |
