The S8VS series of switch-mode power supplies are a compact and lightweight product from Panasonic. It is suitable for various control panels. The series provides 15/30/60/90/120/180/240W seven power options, and offers standard, horizontal, horizontal facing up three installation methods, which can be selected according to user needs. The S8VS series of power supplies have passed UL508/60950-1/1604, CSA C22.2 No. 14/60950-1/213, EN50178 (= VDE0160), EN60950-1 (= VDE0805) and other safety certifications.
The Omron S8VS series is a compact, thin switch‑mode power supply available in 15 W to 240 W ratings. It offers three mounting directions (standard, horizontal, facing horizontal) and can be DIN‑rail mounted or panel‑mounted. All models share common features such as lead‑free solder and safety compliance with UL508, UL60950, CSA C22.2, EN50178 and EN60950.

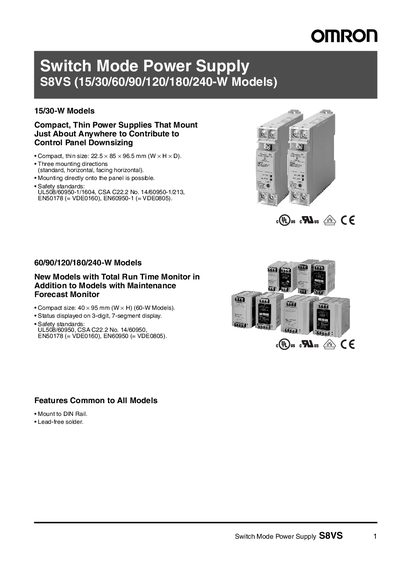

This manual contains the model number structure, detailed electrical specifications (input voltage 100‑240 VAC, output options 5 V/12 V/24 V, efficiency up to 78 % typical), wiring diagrams, protection functions, and warranty and application considerations. It also lists dimensions, weight, and environmental ratings for each power‑rating variant.
| Input voltage range | 100 to 240 VAC (85 to 264 VAC) |
|---|---|
| Output voltage options | 5 V, 12 V, 24 V |
| Maximum output current (5 V) | 20 A (S8VS‑01505) |
| Dimensions (15‑W model) | 22.5 × 85 × 96.5 mm (W × H × D) |
| Weight (typical) | 330 g max |
The S8VS operates from 100 V to 240 VAC (85 V to 264 VAC).
It complies with UL508, UL60950, CSA C22.2 No. 14, EN50178 and EN60950.
Three mounting directions are provided: standard, horizontal, and facing horizontal.
