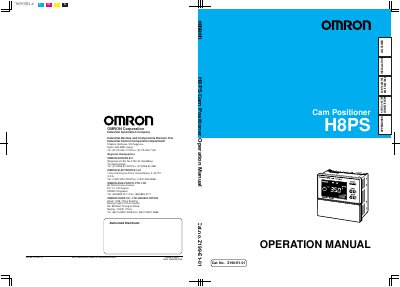

Omron H8PS Cam Positioner Operation Manual
This manual describes the H8PS Cam Positioner, a compact controller for detecting rotation angles. It includes safety notices, warranty information, and detailed precautions for handling, installation, and operation.
The document covers wiring requirements, torque specifications, environmental limits, and programming settings. It also lists the product models, specifications, and provides a comprehensive list of adjustable parameters and troubleshooting tips.
Omron H8PS specifications
| Terminal screw tightening torque | 0.8 N·m |
|---|---|
| Applicable wire gauge | AWG24 to AWG18 (0.208–0.832 mm²) |
| Warranty period | 1 year from date of sale |
All Omron H8PS documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What torque should be applied when tightening the terminal screws?
The terminal screws should be tightened to a torque of 0.8 N·m.
Which wire gauges are suitable for connecting the H8PS?
Use wires ranging from AWG24 to AWG18, corresponding to a cross‑sectional area of about 0.208 to 0.832 mm².
What is the maximum rotational speed of the cam locator?
The cam locator can operate up to 1600 r/min.
