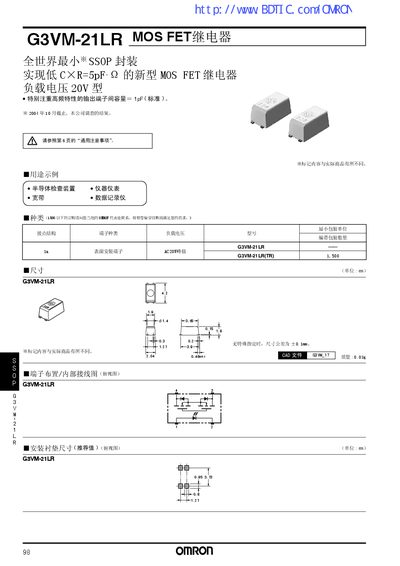

G3VM-21LR is a MOS FET relay produced by OMRON. It is packaged in SSOP and has a load voltage of 20V. The output terminal capacitance is only 1pF, which is particularly suitable for high-frequency applications.
The G3VM-21LR is a miniature MOS FET relay in an SSOP package, designed for low capacitance (≈1 pF) and high‑frequency applications such as semiconductor test equipment and data recorders. It supports a load voltage of 20 V and offers a compact surface‑mount form factor.
The manual lists electrical ratings, including a continuous load current of 160 mA, LED forward current of 50 mA, and an output off‑voltage of 20 V. Installation notes cover recommended pad dimensions, soldering guidelines, and recommended operating temperature range of 25 °C to 60 °C. This manual is written in Chinese.
| Load voltage | 20 V |
|---|---|
| LED forward current (IF) | 50 mA |
| Output off voltage (VoFF) | 20 V |
Recommended operating temperature is 25 °C to 60 °C.
LED forward current is rated at 50 mA.
