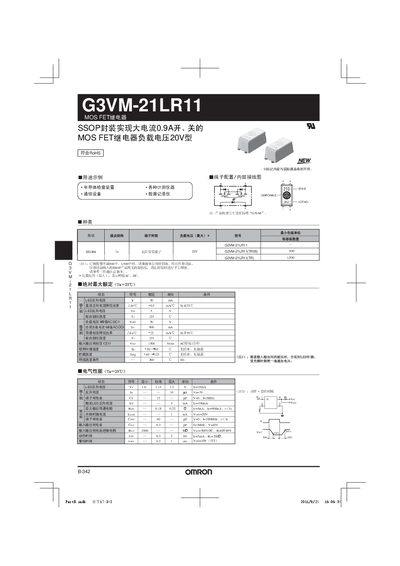

This document describes the features and characteristics of G3VM-21LR11 MOS FET, including its electrical parameters, operating temperature range, and package type.
The G3VM-21LR11 is a MOS FET relay from Omron, packaged in an SSOP4 surface‑mount package and designed for low‑power switching with a maximum load voltage of 20 V and a maximum load current of 0.9 A.
The datasheet lists key electrical characteristics such as LED forward current of 50 mA, forward voltage of 1.0‑1.15 V, actuation time of 1‑2 ms, release time of 1 ms, and an operating temperature range of –20 °C to +85 °C. This manual is written in Chinese.
| Package type | SSOP4 |
|---|---|
| Maximum load voltage (peak AC/DC) | 20 V |
| Maximum load current | 0.9 A |
| LED forward current | 50 mA |
| LED forward voltage | 1.0‑1.15 V |
| Operating temperature range | -20 °C to +85 °C |
| Actuation time | 1‑2 ms |
| Release time | 1 ms |
The maximum load voltage (peak AC/DC) is 20 V.
The relay is rated for an ambient temperature from –20 °C to +85 °C.
The actuation time is specified as 1 to 2 ms.
The LED forward current is 50 mA.
