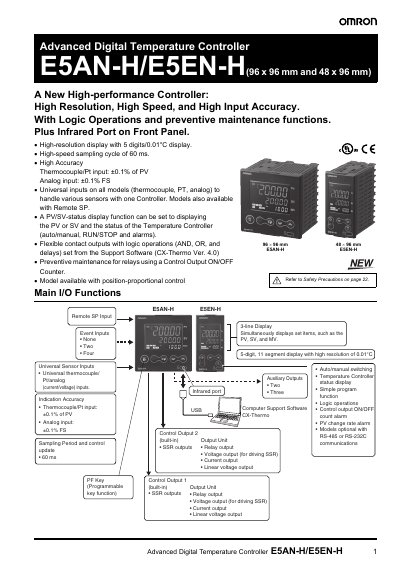

Omron E5AN-H/E5EN-H Advanced Digital Temperature Controller Datasheet
The Advanced Digital Temperature Controller E5AN-H/E5EN-H offers high‑resolution 5‑digit/0.01 °C display, fast 60 ms sampling, and flexible universal inputs for thermocouples, platinum resistance thermometers, current and voltage signals. It supports logic operations, alarm functions, and optional communication modules (RS‑232C, RS‑485, RS‑422, USB) for integration into heating, cooling, or combined control applications.
The controller is available in 96 × 96 mm and 48 × 96 mm formats with power options of 100‑240 VAC or 24 VAC/VDC. It provides relay, SSR, voltage, and current outputs, along with auxiliary outputs for alarms and transfer functions. Detailed ordering codes, accessories, and environmental ratings are included for system designers.
Omron E5AN-H specifications
| Power supply voltage | 100 to 240 VAC, 50/60 Hz |
|---|---|
| Display resolution | 5 digits/0.01 °C |
| Relay output rating | SPST‑NO, 250 VAC, 3 A |
| Thermocouple types supported | K, J, T, E, L, U, N, R, S, B, W, PL II |
| Supported communication interfaces | RS‑232C, RS‑485, RS‑422, USB |
Source: Omron E5AN-H/E5EN-H Advanced Digital Temperature Controller Datasheet
All Omron E5AN-H documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Which communication interfaces are available?
It supports RS‑232C, RS‑485, RS‑422, and USB connections.
From: Omron E5AN-H/E5EN-H Advanced Digital Temperature Controller Datasheet
What is the display resolution?
The front‑panel display shows five digits with a 0.01 °C resolution.
From: Omron E5AN-H/E5EN-H Advanced Digital Temperature Controller Datasheet
What is the display resolution of the E5AN-H/E5EN-H controller?
It provides a 5‑digit display with a resolution of 0.01 °C.
How fast does the controller sample temperature?
The controller samples at a cycle of 60 ms.
